1. Stunner 2. Automatic killing machine 3. Bleeding trough 4. scalder 5. pluckers (3x)
- Kill department:
tube track, chain, tolleys on 6", 3-point st st kill shackles

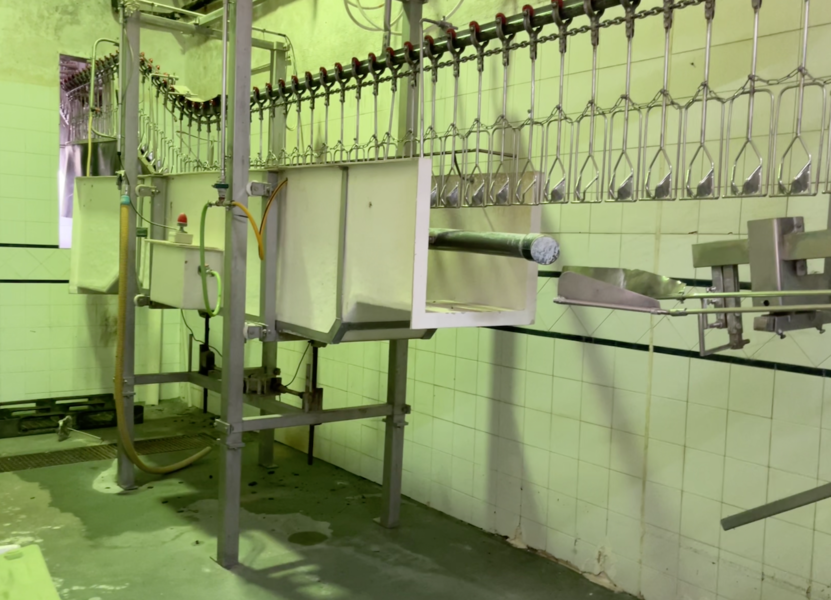

Stunner

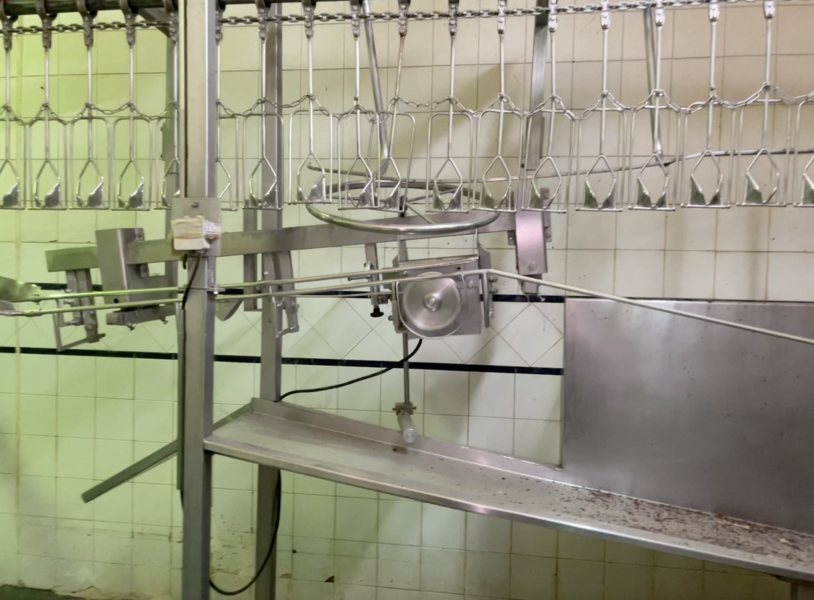

Automatic killing machine

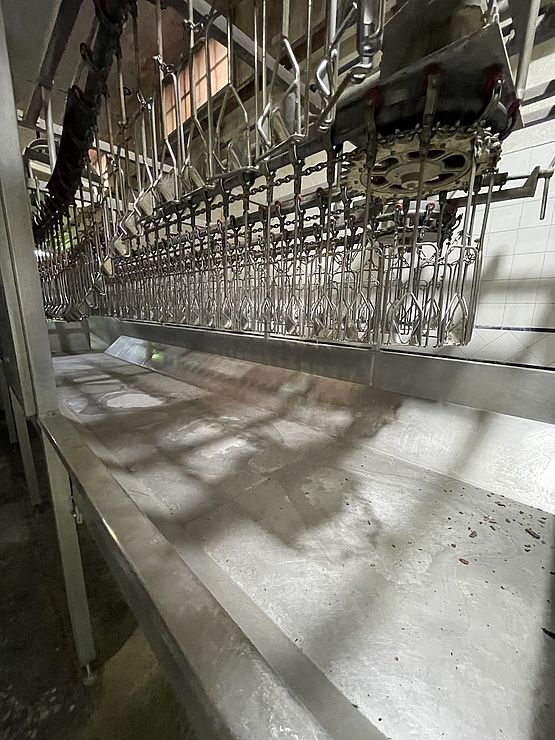

Bleeding trough

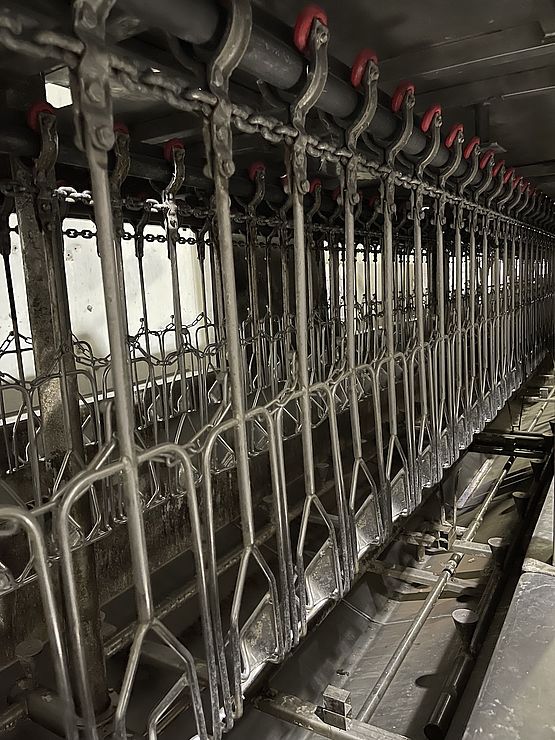

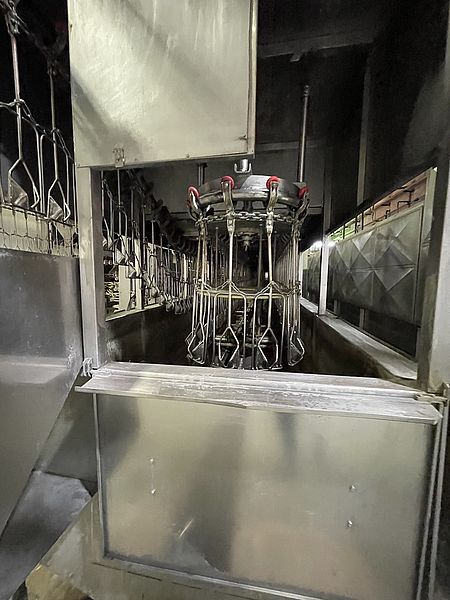

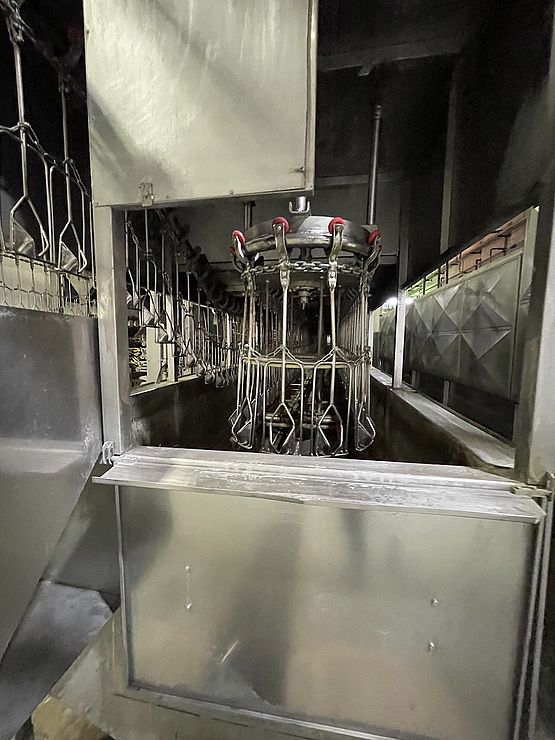

3 pass Scalder

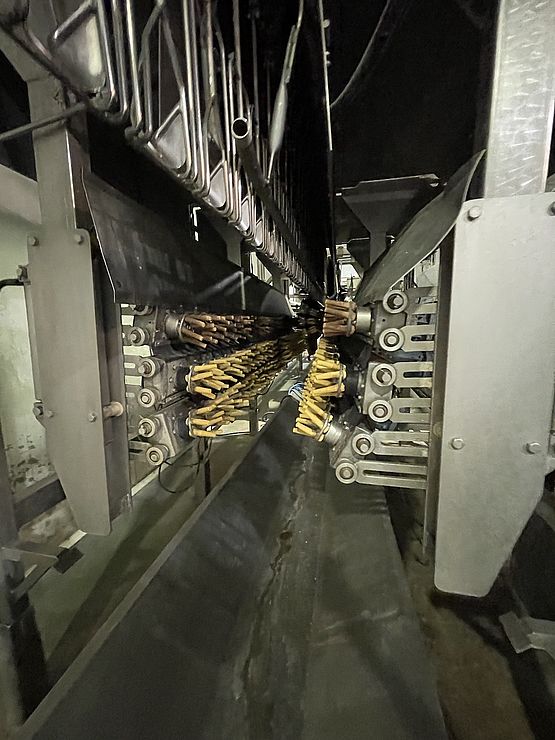

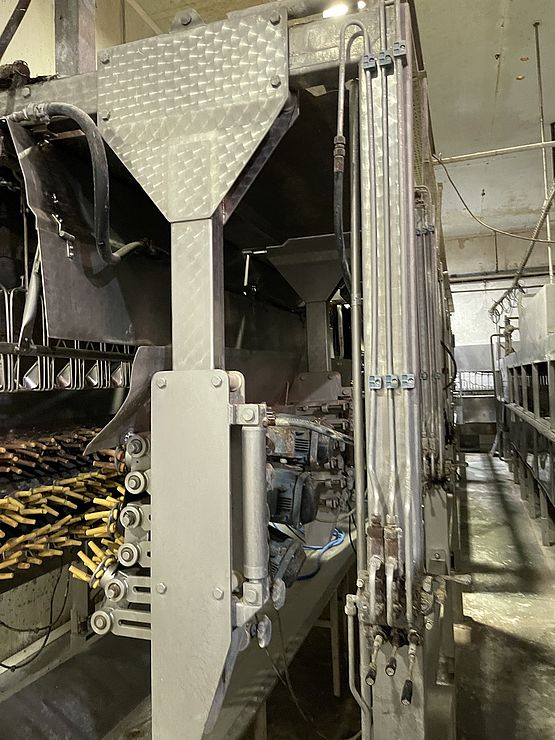

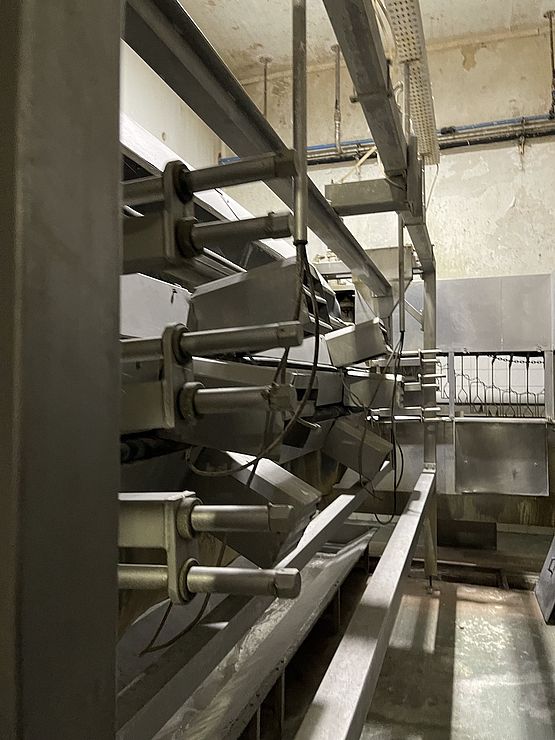

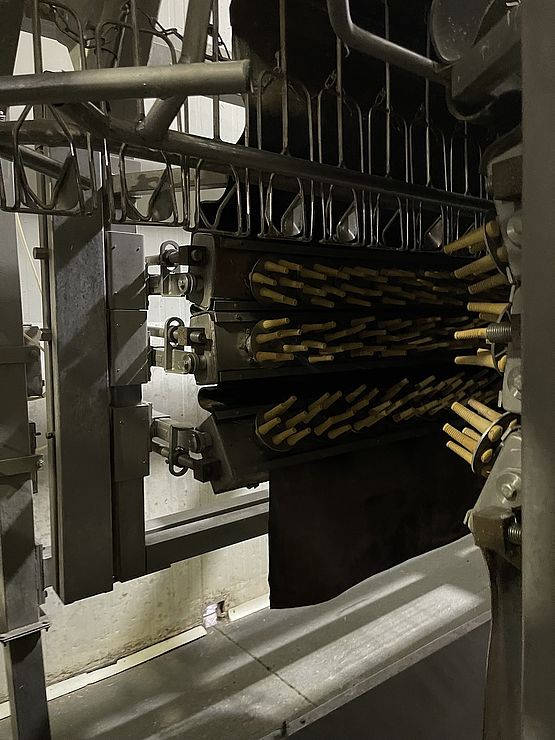

Linco Tunnel Pluckers (3x) 3 bank

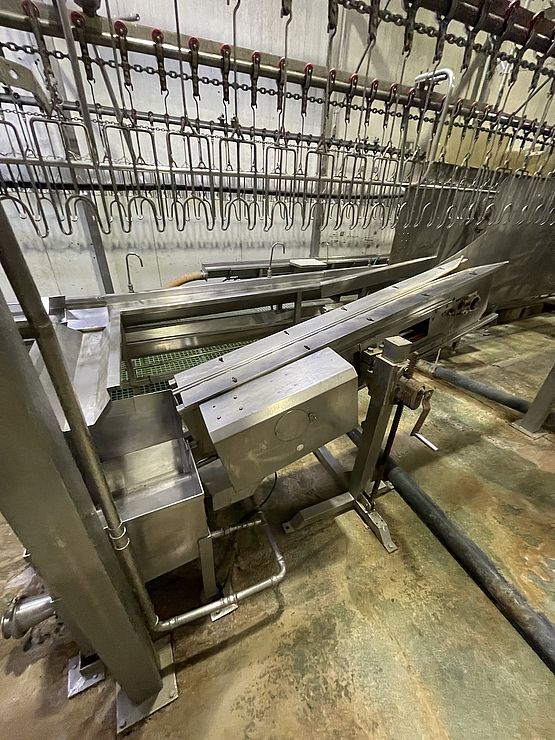

Head pulling machine
Systemate Automatic Re-hanging/hockcutting from killing to Evisceration
Evisceration:
tube track, chain, st. st. tolleys on 6", 3point shackles
floor mounted steel support construction

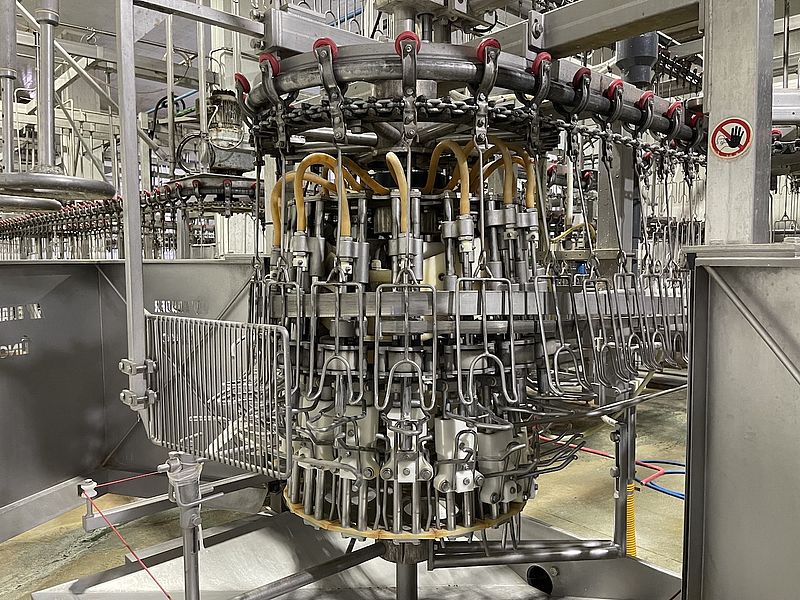

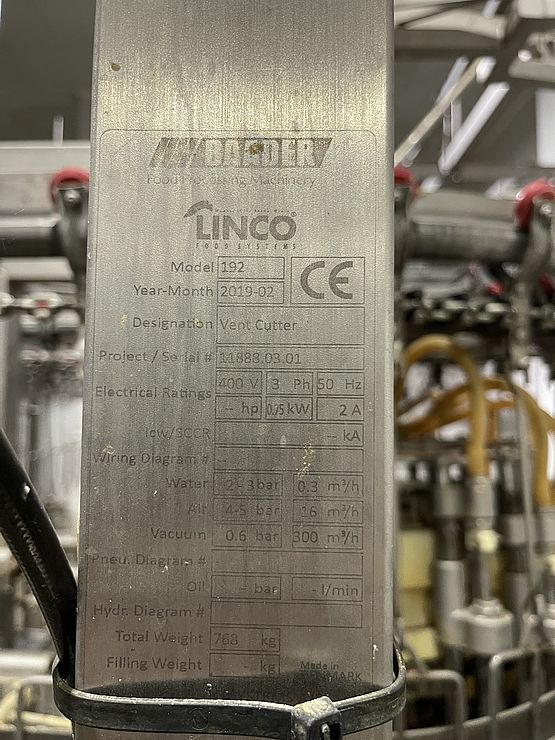

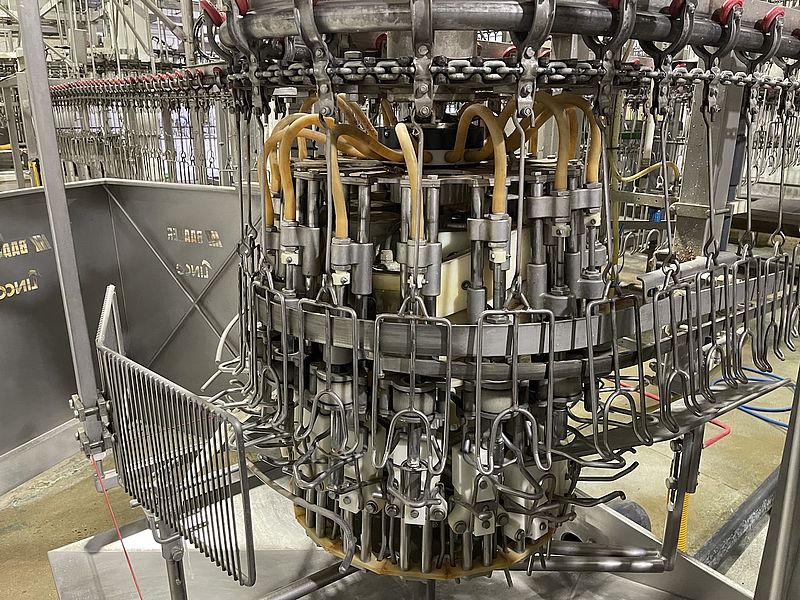

Linco Vent cutting machine 16x6''

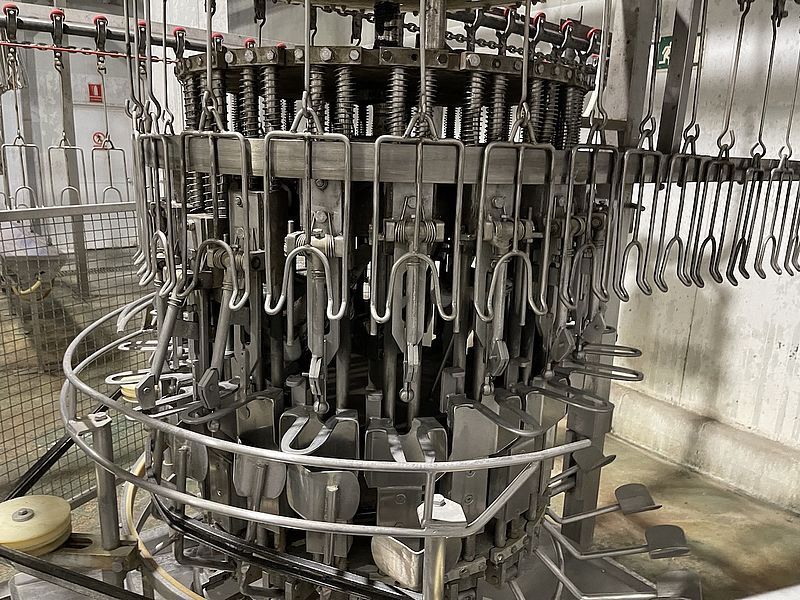

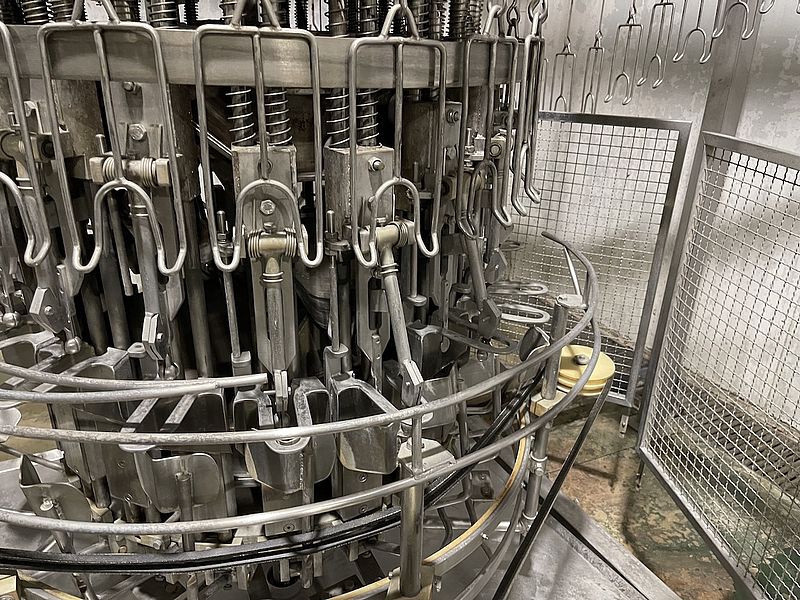

Opening Machine 14x6''

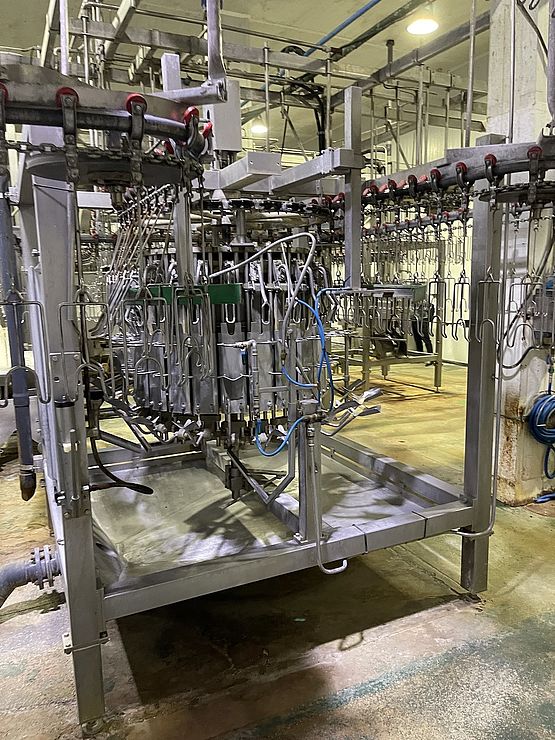

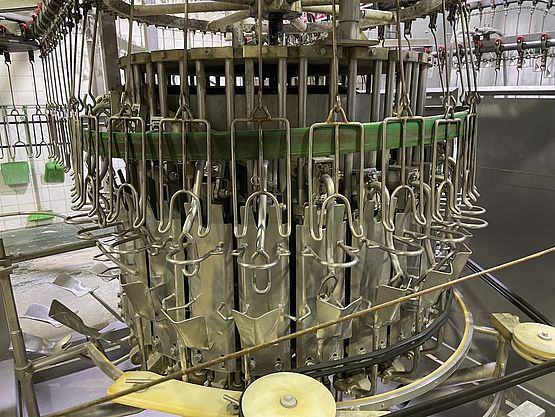

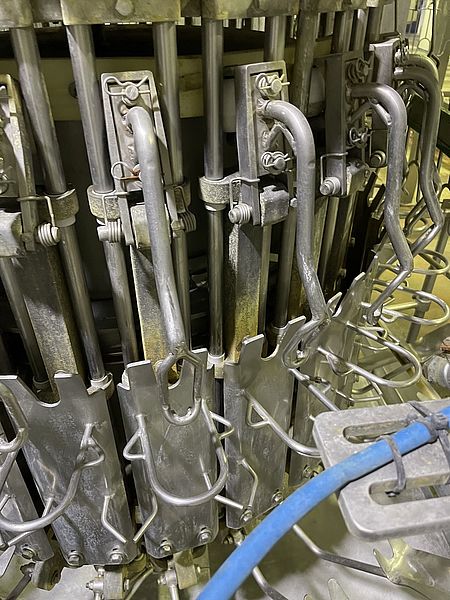

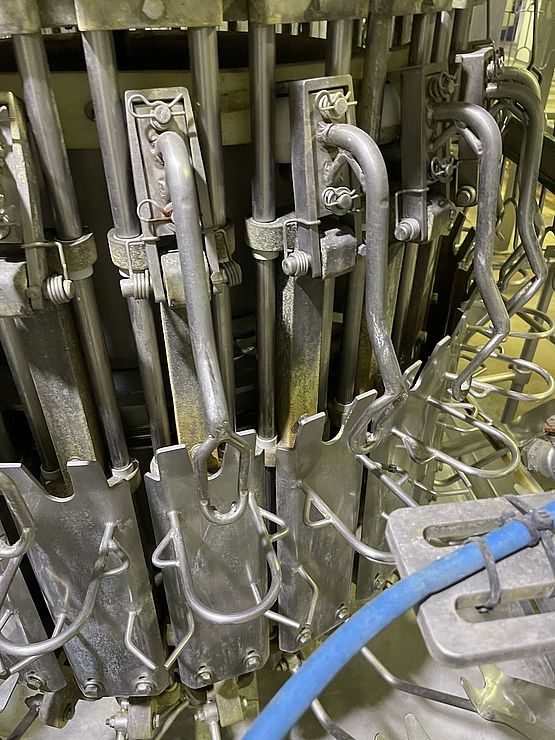

Systemate Eviscerator machine 20x6''
8 pers packremoval trough

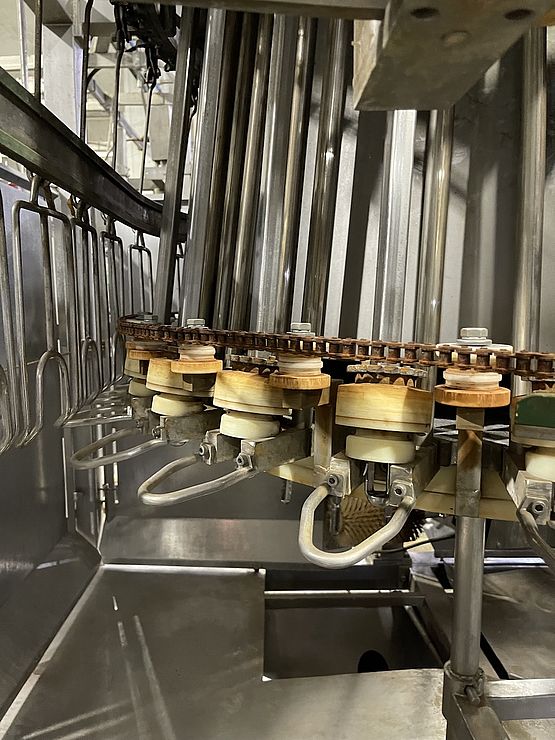

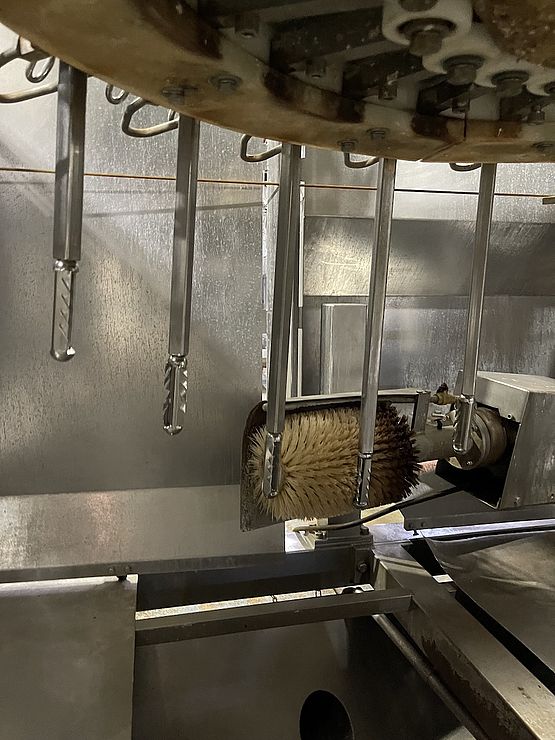

Systemate Cropping machine 16x6''

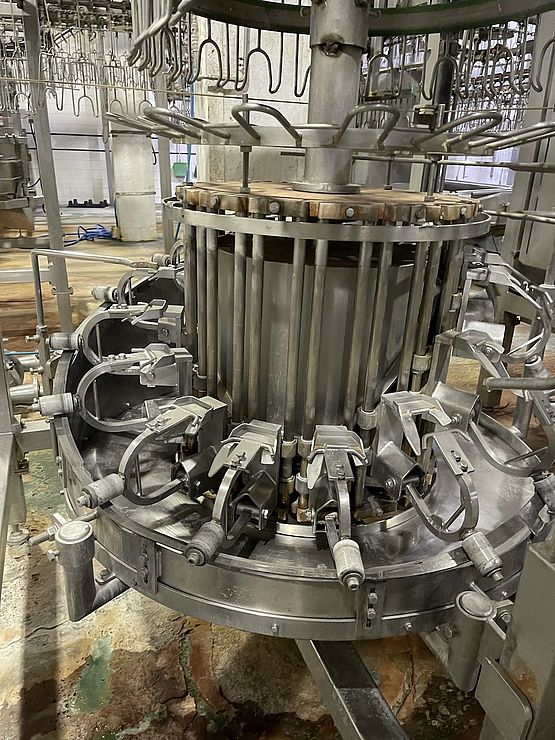

Systemate Neck breaker 14x6''
Neckskin trimmer 14x6''

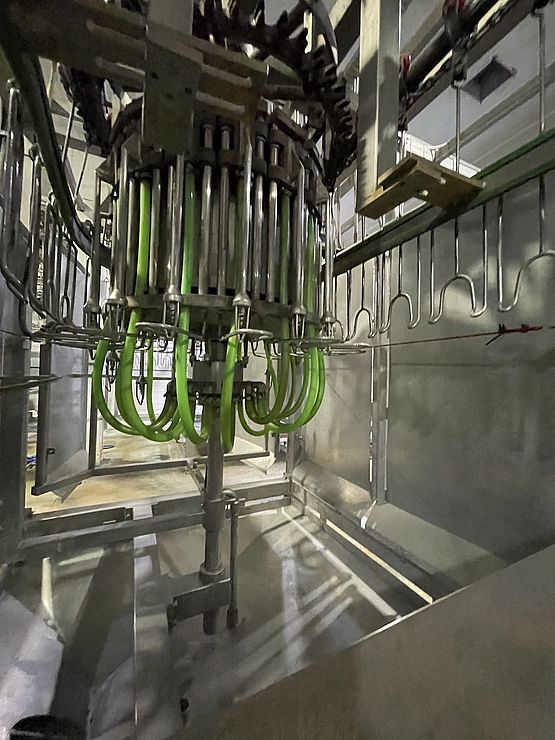

Inside Outside bird washer 12x6''

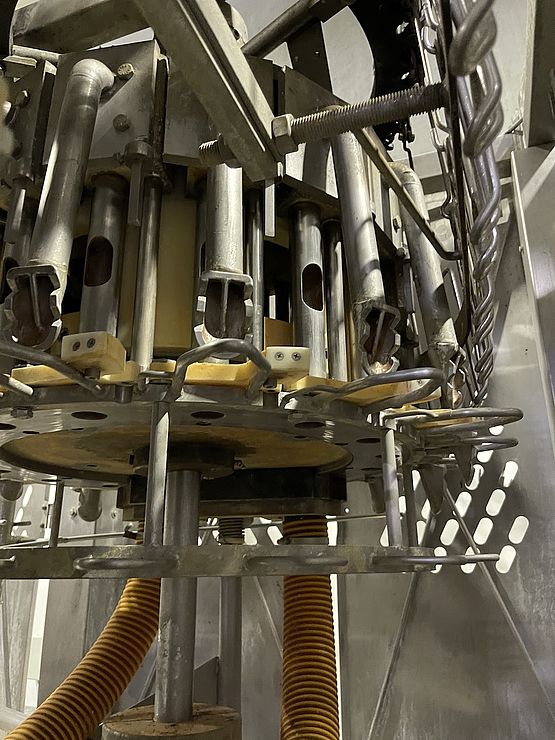

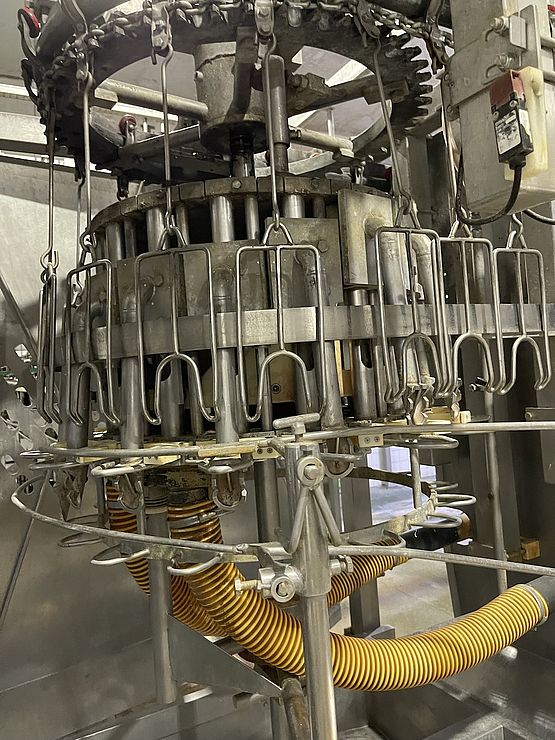

Systemate Final controll/inspection machine 12x6''

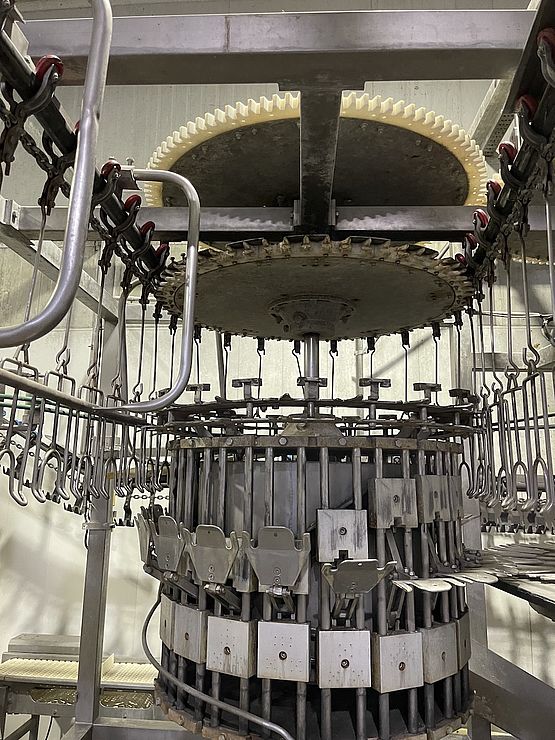

Systemate Automatic Re-hanging from Evisceration to Air-chilling

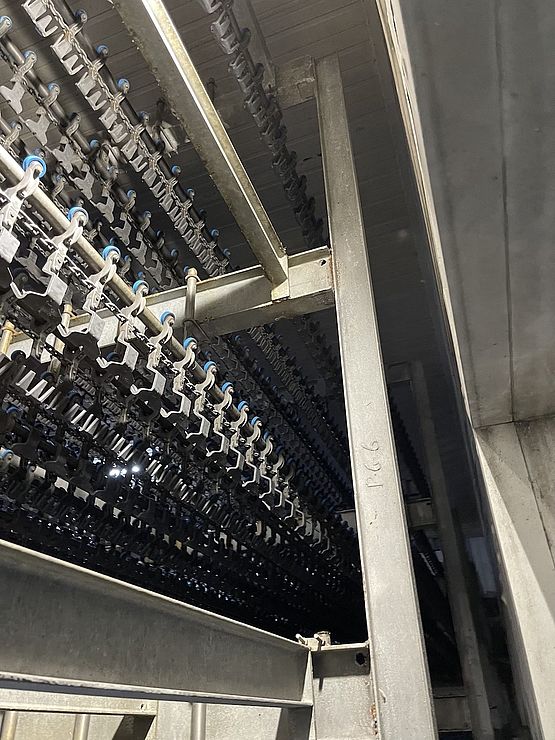

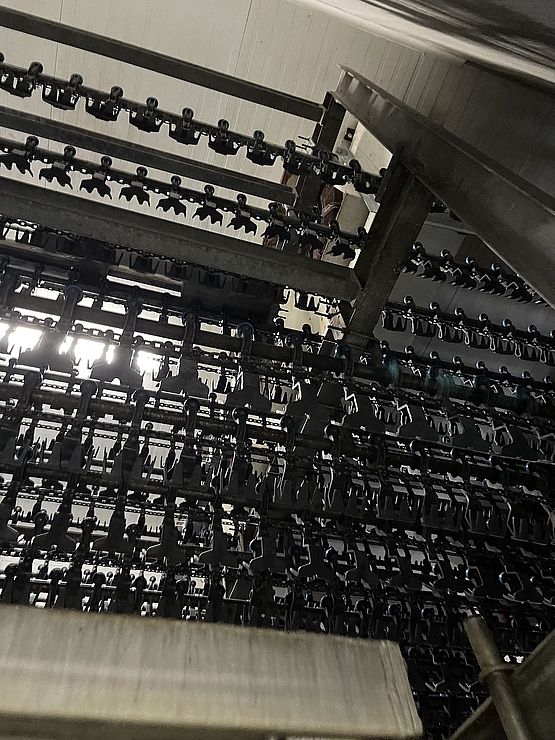

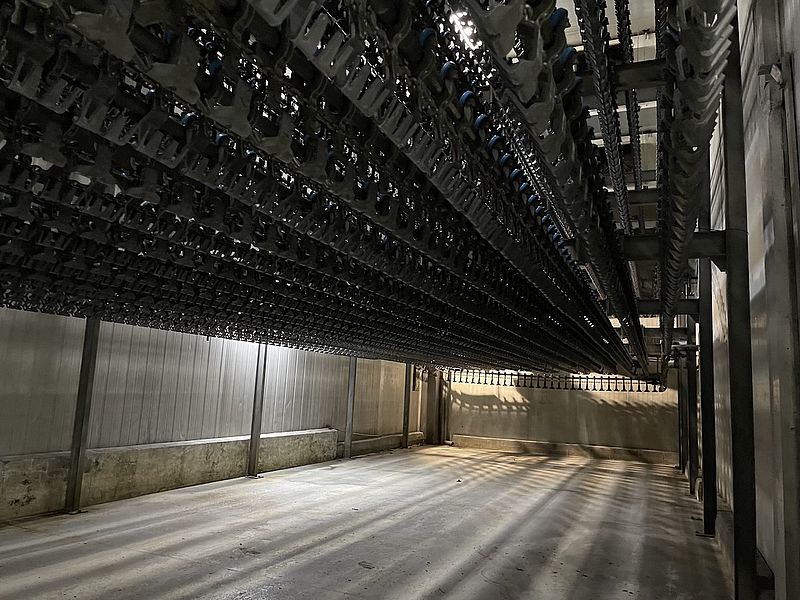

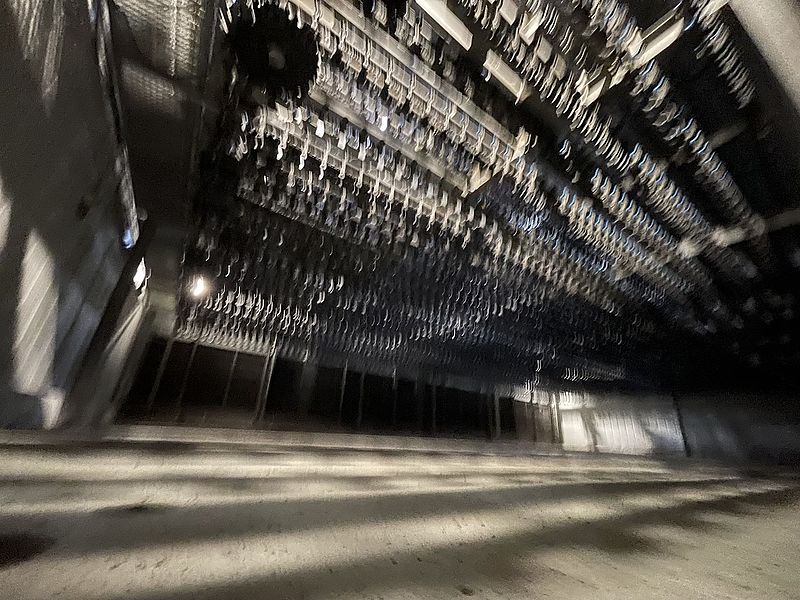

Air-chill
Length approx 1800m
tube track, chain, Linco Nylon tolleys on 6", 3point airchill shackles.
floor mounted, self-standing galvanized frame
- OPTIONAL 1:
Arrival area:
galvanized live-bird transportation trolleys
6 hydraulic live-bird-trolley unloading stations
live-bird-trolley washer - Whole bird weighing department
tube track, chain, st. st. tolleys on 8", 3point weight shackles
8 + 8 drop-off stations
8 + 8 drop-off bins
in-lineweigh station - Cut-up, Deboning and further processing departement
Systemate cut-up line:
- mid wing cutter
- whole wing cutter
- 180deg pre cutter
- front half
- saddle splitter
- Anatomical leg-processor
- double front-half cone debone line with in-outfeed conveyor w.double sided trimming table
- thigh deboner, 4u
- various connecting conveyors and trimming tables
OPTIONAL 2
: various packaging equipment
- Waldy SA 55 Piri (whole bird) tray wrapper
- ULMA FM 205
- and various
Line consist of:
Linco: Kill, bleed, scald, pluck

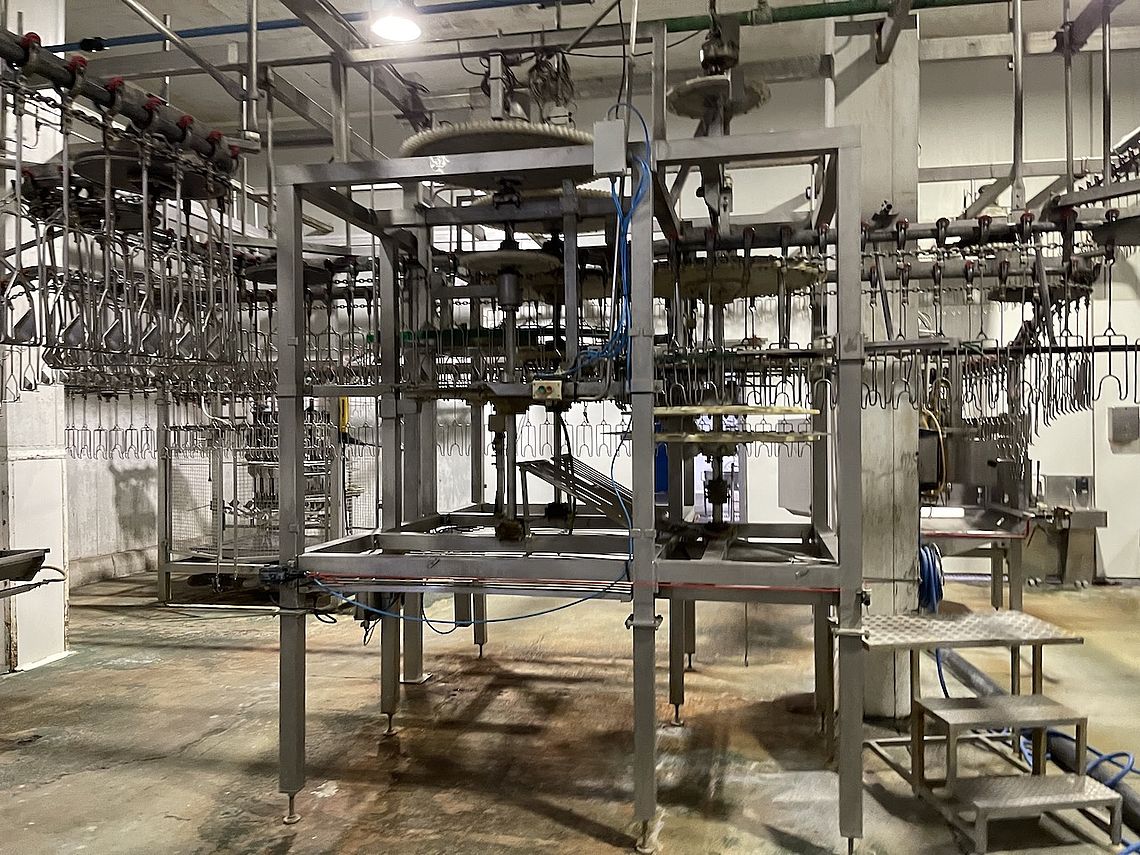

Automatic Rehanger killing to Evisceration
1. Automatic Rehanger killing to Evisceration
