1000-3000 bph Poultry Processing Plant

  • Main benefits



    • Standalone poultry processing plant with a capacity of 1000 - 3000 birds per hour
    • An efficient and complete solution with NEW machines based on proven technology
    • Fully floor mounted with a self standing frame
    • Produced according to CE-norms
    • Includes electrical control panel
    • Average live weight: 1.2 - 4kgs
    • Low/medium/high scalding possible:
    • 1500bph, 2.7 minute low scalding (51-53C)
    • 2000bph, 2 minute medium scalding (56-58C)
    • 3000bph, 1.5 minute high scalding (60-62 C)

Poultry Processing Plant Layout Example

Section details

  • with track
  • 6”chain/trolleys, shackles (8” optional)
  • corner wheels
  • drive (variable speed)
  • tensioner
  • total Line lenght up to 70m

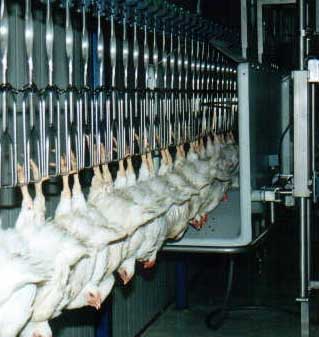

Stunner with control

  • Nylon stunner bath (0.75 meter long)
  • Self standing stainless steel frame

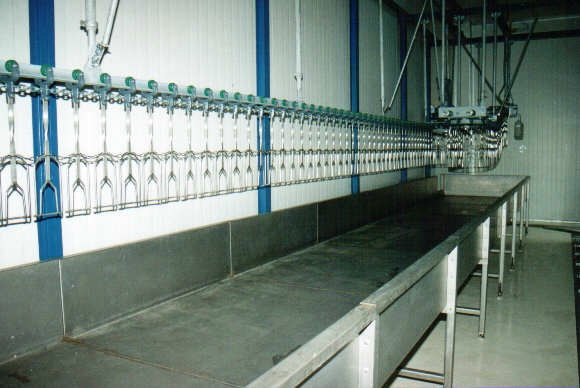

Blood trough

  • Floor mounted
  • Up to 10,0 meter long

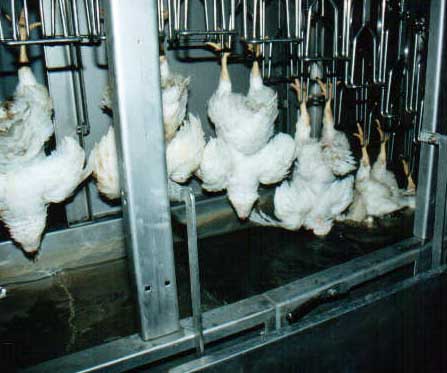

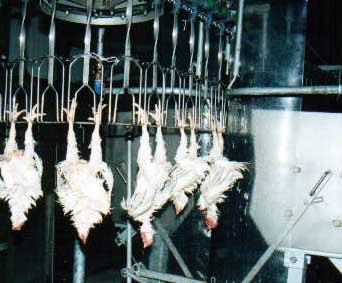

Stainless steel scalder



  • Effective scalding length 10.0 m (2 sections)
  • Electrical heating or boiler with hot water
  • Blower
  • Temperature control
  • Water leveller
  • Scalding time (2 sections)
  • @ 1500bph, 2.7 minute low scalding (51-53C)
  • @ 2000bph, 2 minute medium scalding (56-58C)
  • @ 3000bph, 1.5 minute high scalding (60-62 C)

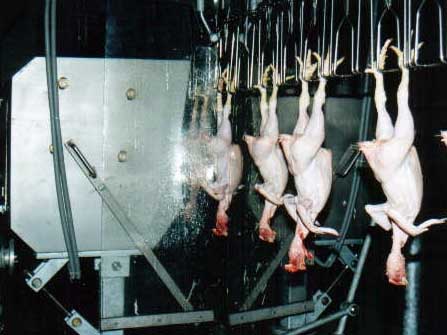

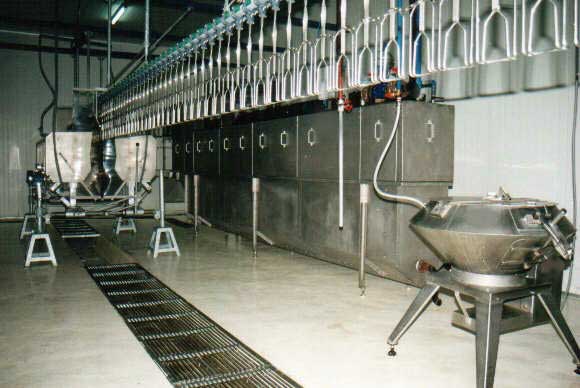

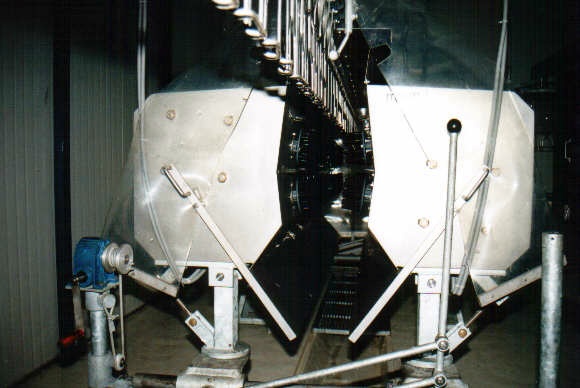

Plucker

  • With 2 cabinets, on frame, all stainless steel
  • 2 x 2 rows 10 plucking discs, 12fingers/disc ea
  • Belt driven
  • 4 motors
  • The plucker is constructed with OEM parts, widely available in the market

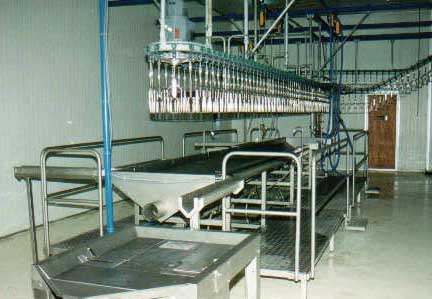

1 double sided Evisceration trough

  • 5 water tabs

Set of working tools, per set

  • 4 kill knives
  • 5 evisceration fork
  • 5 gizzard scissors
  • 5 lung scraper
  • 3 sharpening steel

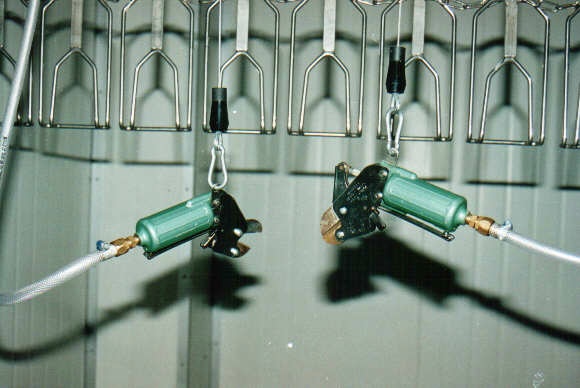

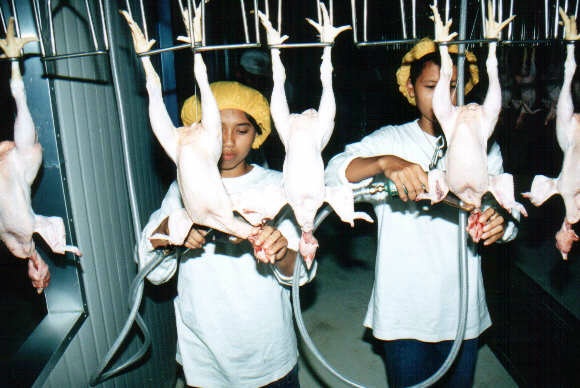

Head/neck/hock cutter

  • Pneumatically powered (excluding compressor)
  • Weight Balance

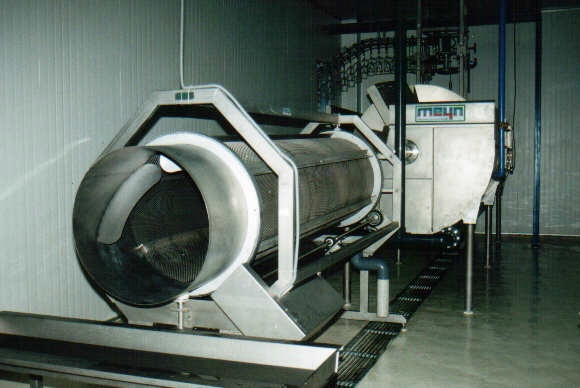

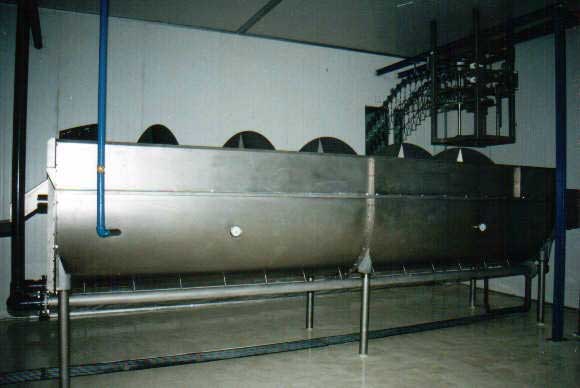

1 water chiller, all stainless steel

  • Dimensions: 1.6m diameter x 6m long
  • Blower 1.75kW
  • Optional cold water generator/flake ice machine

Perforated table at out-feed chiller

  • All stainless steel

Packing table

  • 2 packing funnel (for chicken in bags)
  • 4 vtape sealer or clipper

Table mounted needle cutter station

  • 2 Needle cutter (0.25kW)

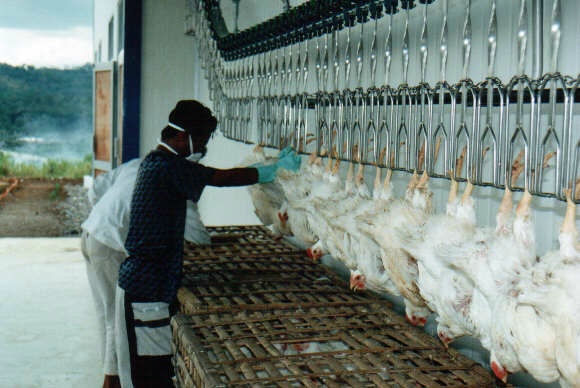

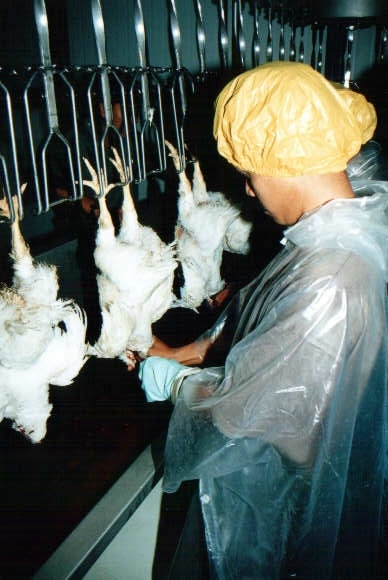

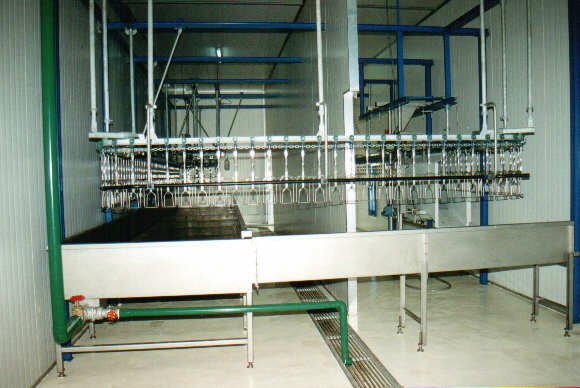

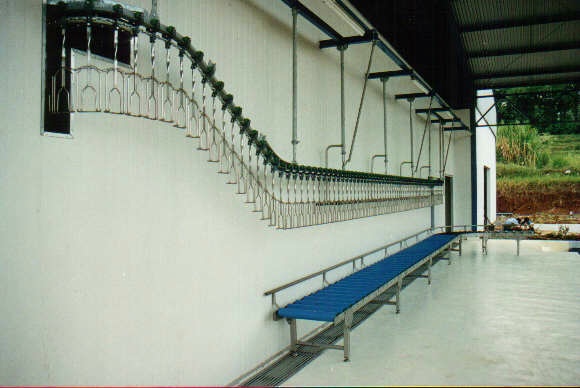

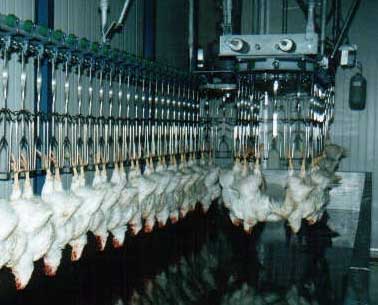

Kill section photos

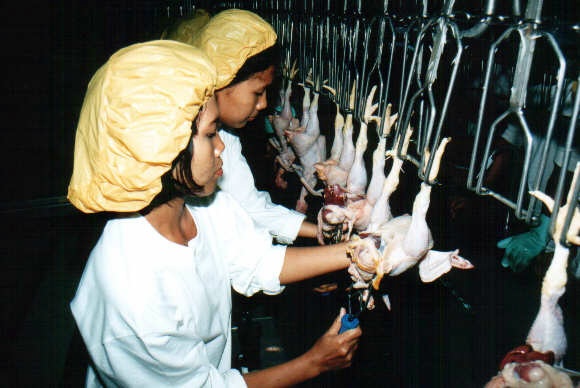

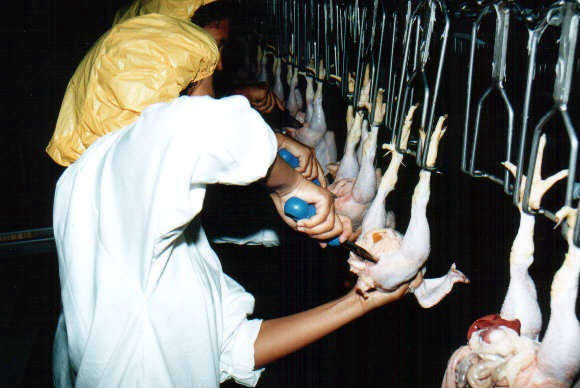

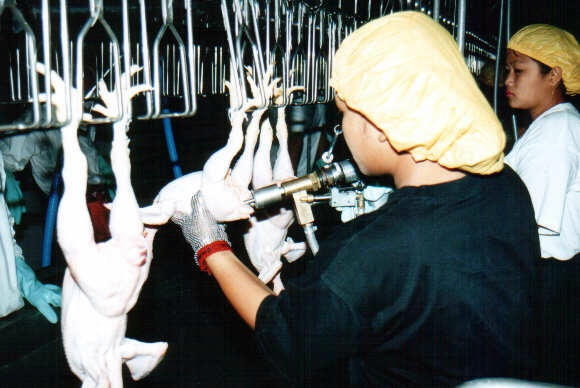

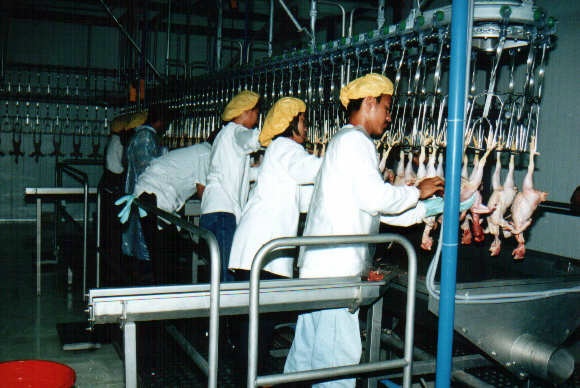

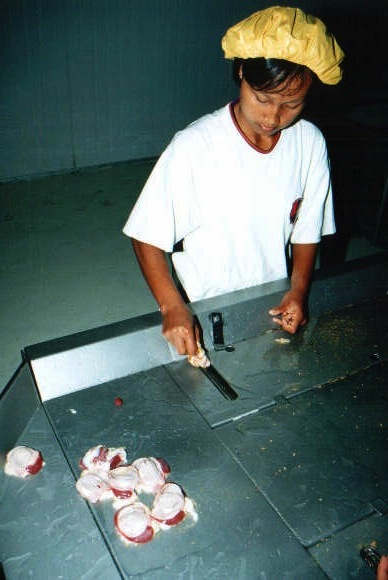

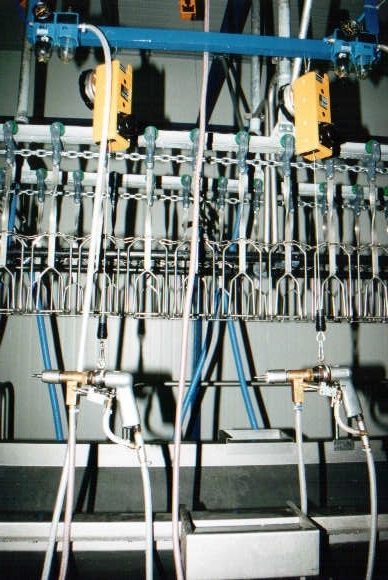

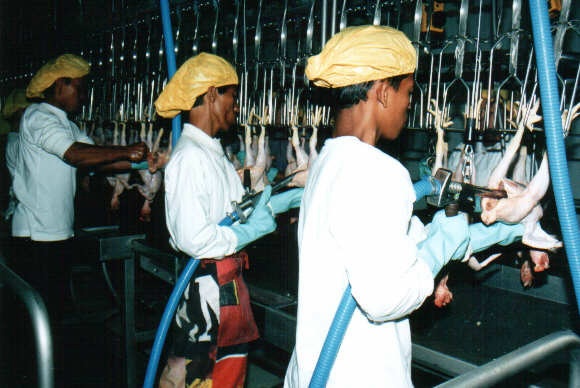

Evisceration section photos

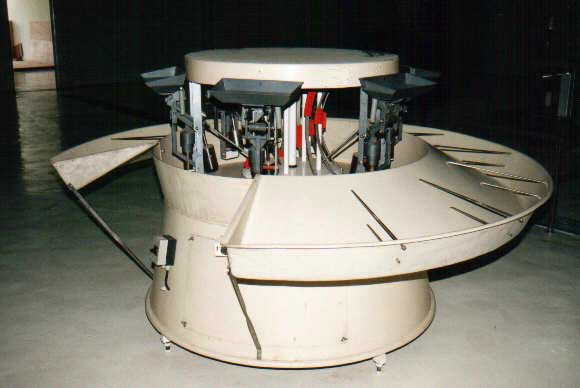

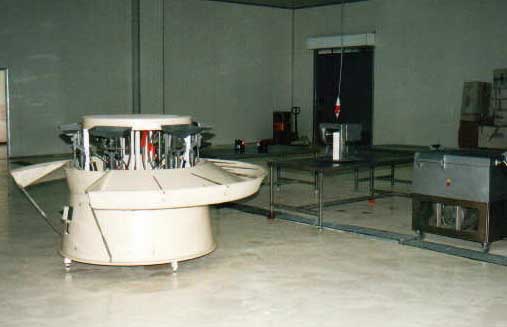

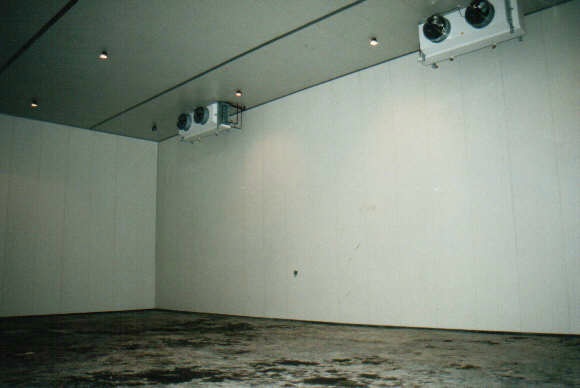

Chilling & packing section photos



Semi-automatic line 1000-3000 bph (custom)

Details

brand: USE Poultry Tech
machine: Semi-automatic killing / defeathering / evisceration line
pitch: 6" (8" optional)
capacity: 1000-3000 bph
