500-1300 bph Poultry Processing Plant
Main benefits
- Standalone poultry processing plant with a capacity of 500 - 1300 birds per hour
- A simple, but complete solution with NEW machines based on proven technology
- Fully floor mounted with a self standing frame
- Produced according to CE-norms
Video
Section details

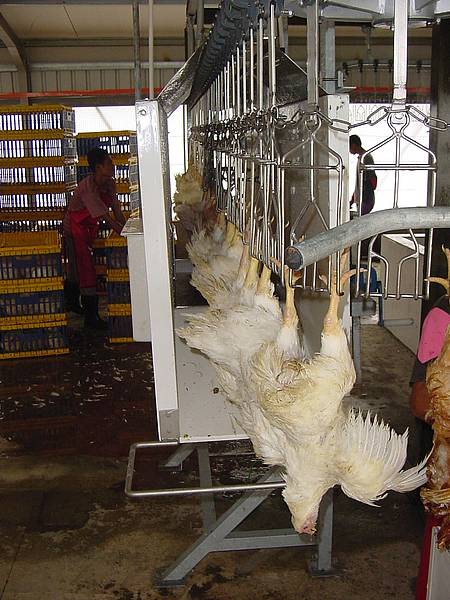

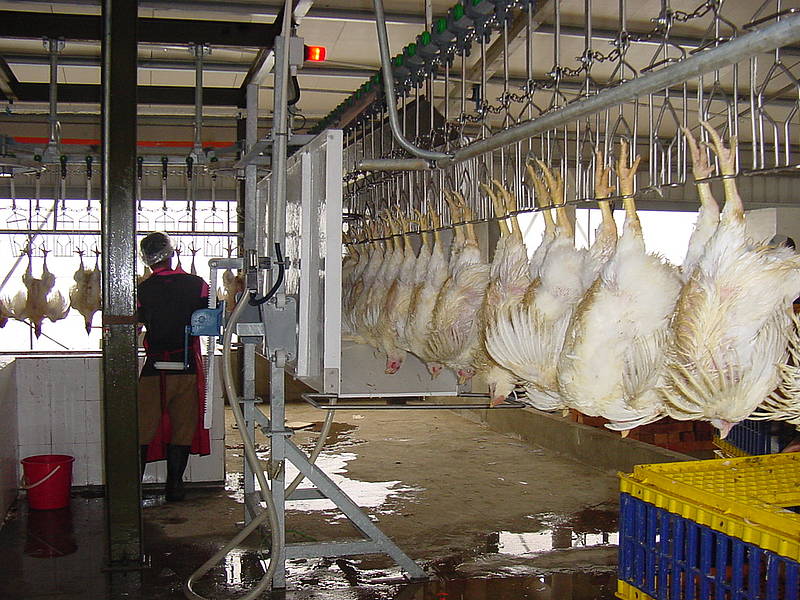

Stunner with control
- Nylon stunner bath (0.75 meter long)
- Self standing stainless steel frame

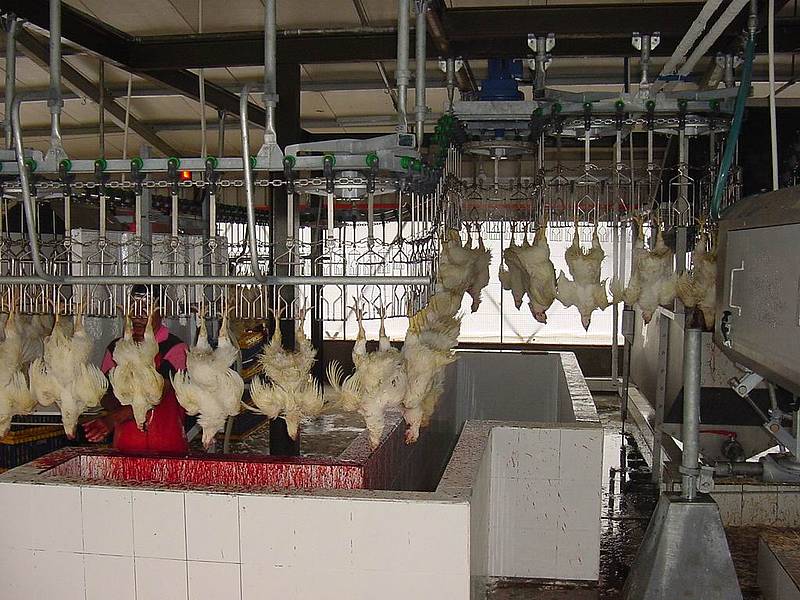

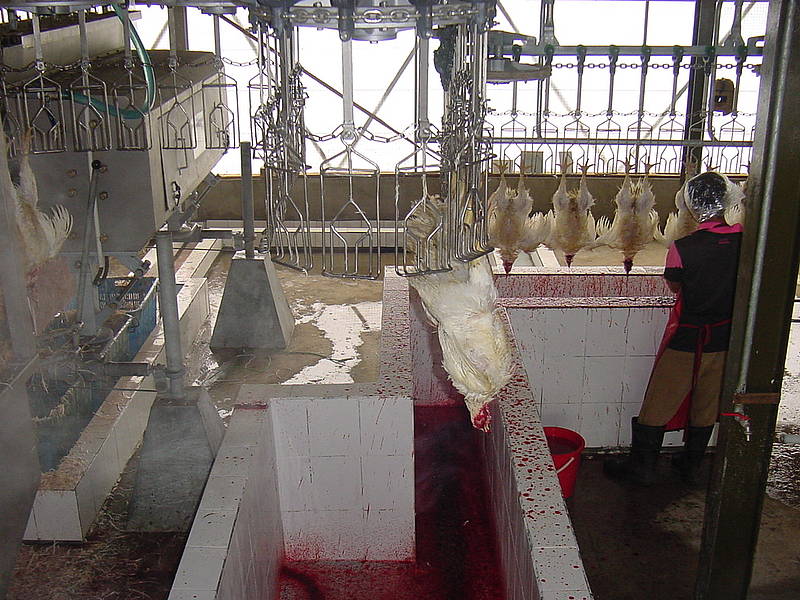

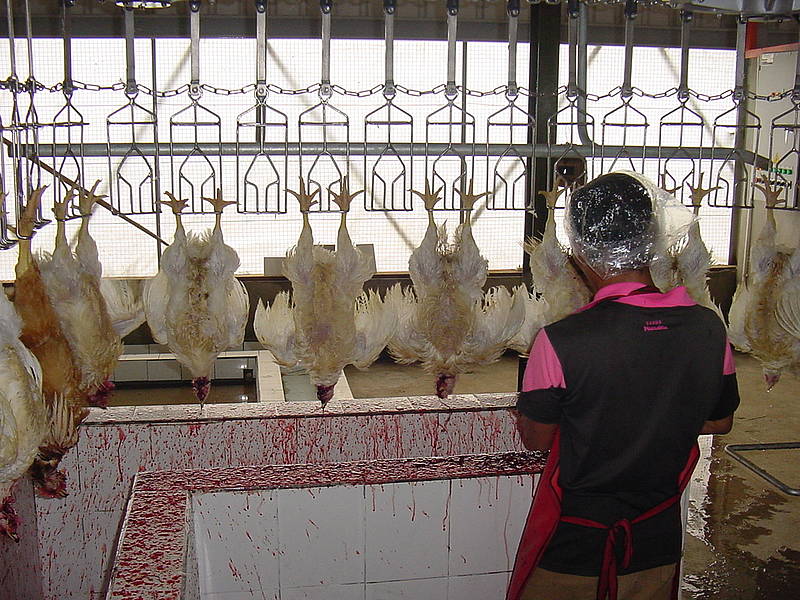

Blood trough
- Floor mounted 2,0 meter long

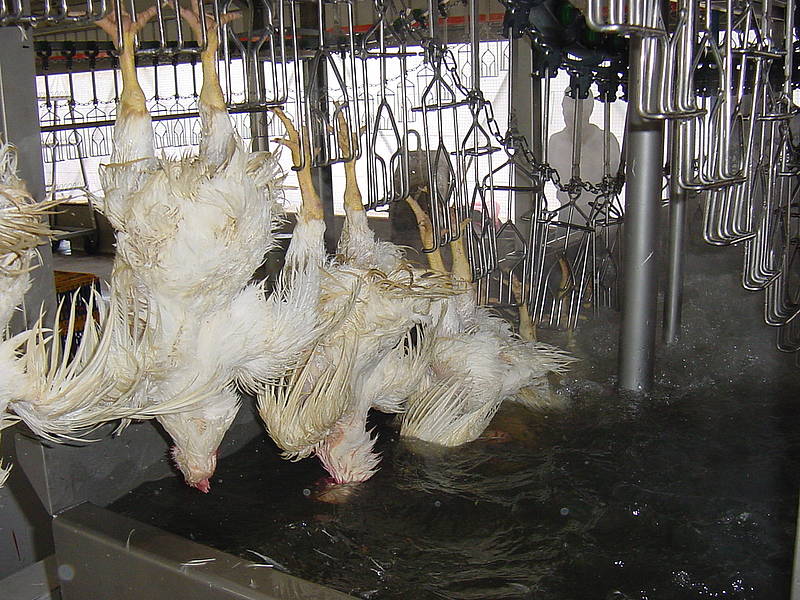

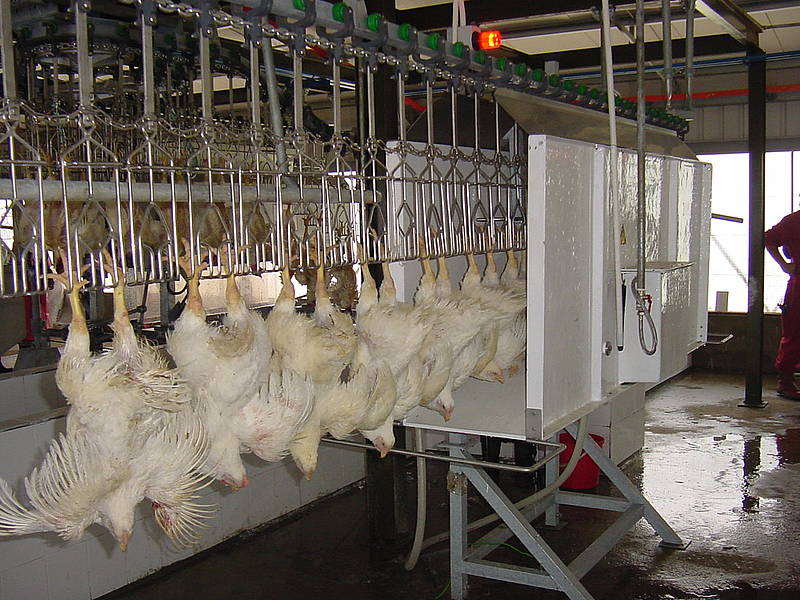

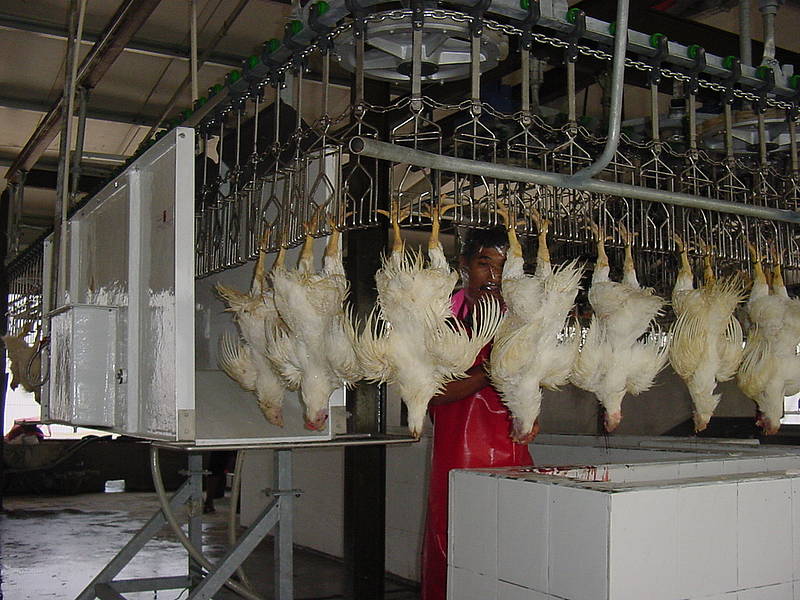

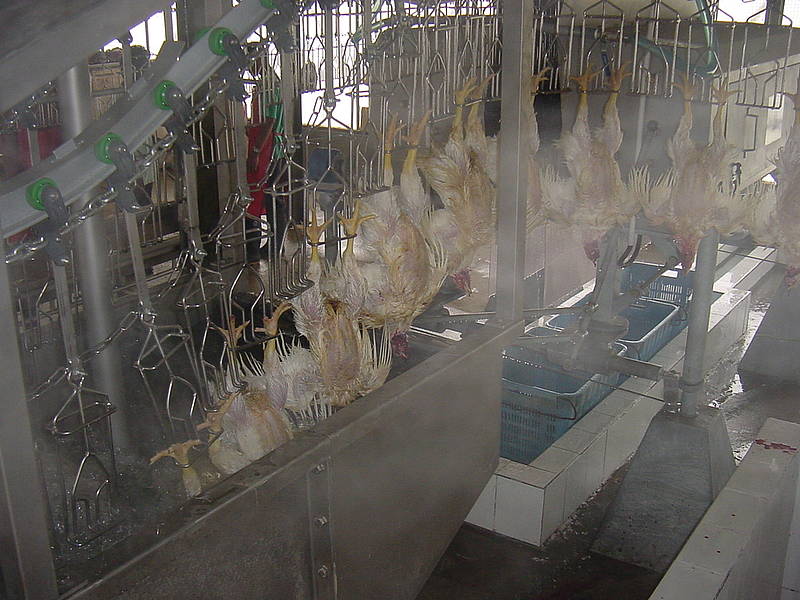

Stainless steel scalder
- Effective scalding length 5.0 m
- Electrical heating or boiler with hot water
- Blower
- Temperature control
- Water leveller
- Scalding time:
- 500bph, 3.9 minute low scalding (49.8-53C)
- 1000bph, 2 minute low scalding (56-58C)
- 1300bph, 1.5 minute high scalding (60-62 C)

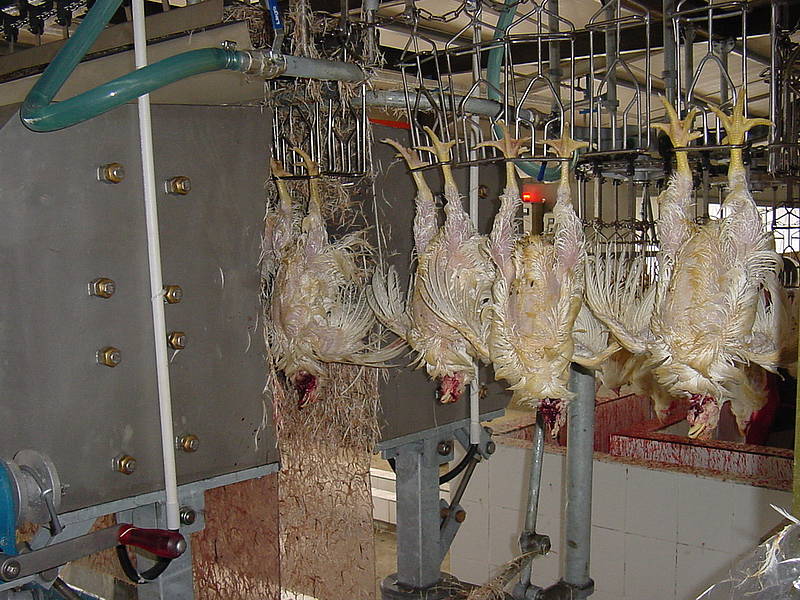

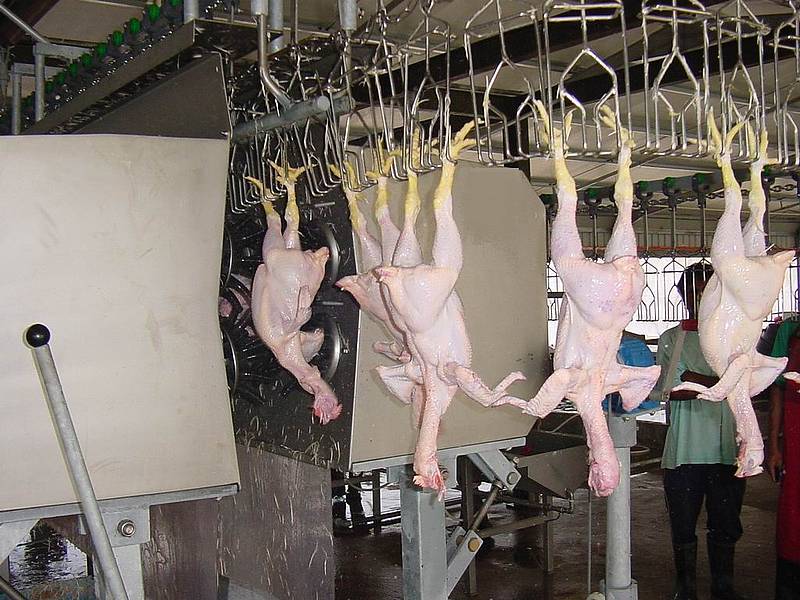

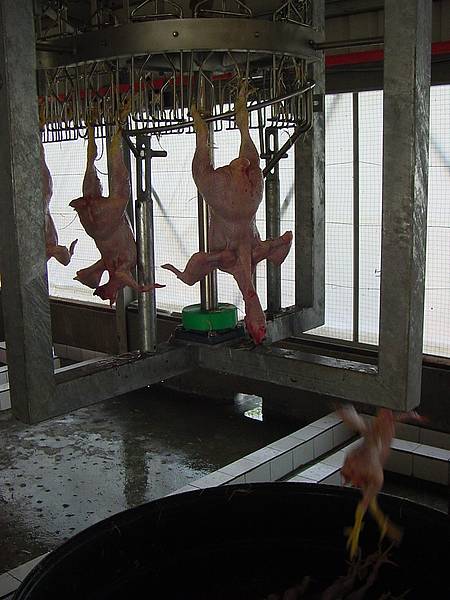

Plucker, with 2 cabinets, on frame, all stainless steel
- 2 x 2 rows 8 plucking discs, 12fingers/disc ea
- Belt driven
- 4 motors
- The plucker is constructed with OEM parts, widely available in the market
Electrical control panel
Electrical control panel

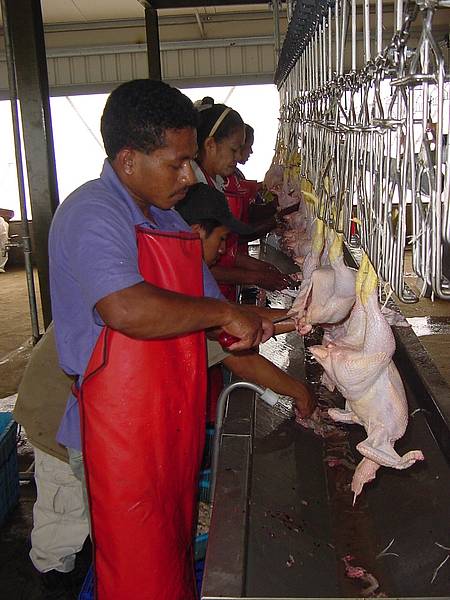

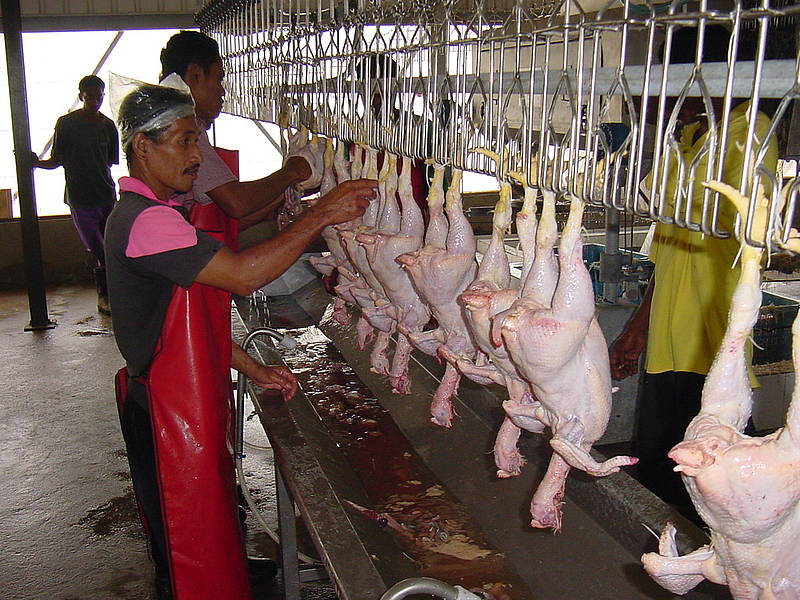

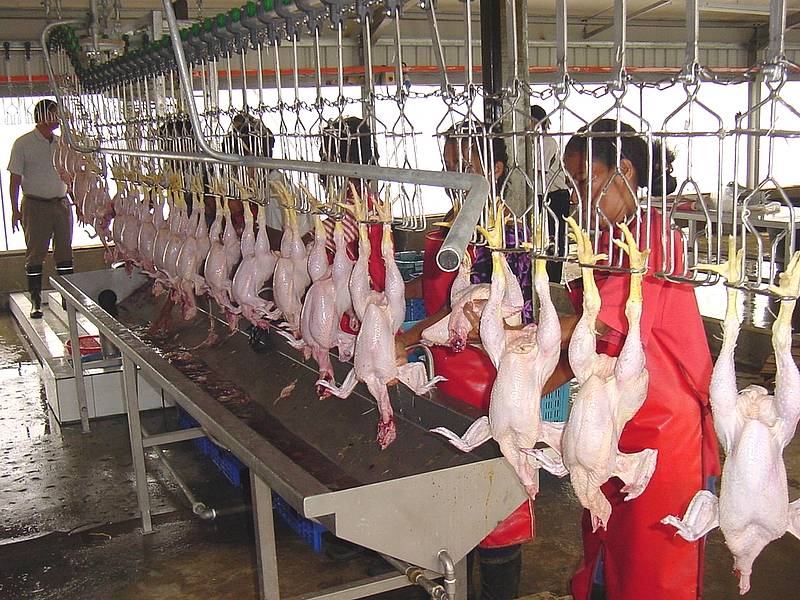

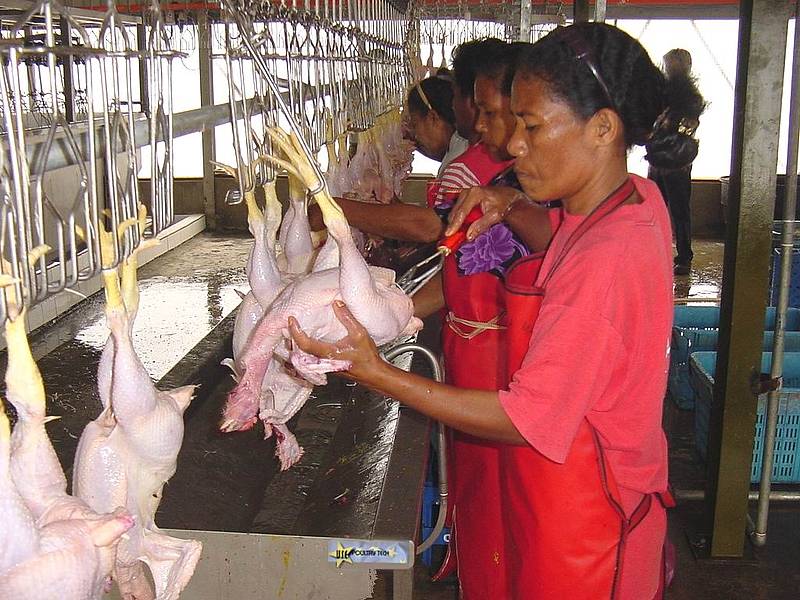

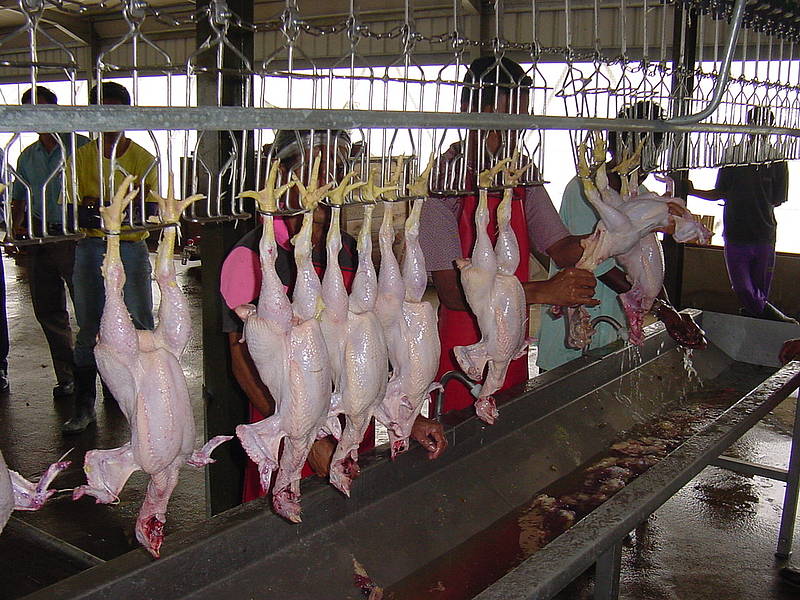

1 double sided Evisceration trough
o 4 water tabs
Set of working tools, per set:
- 4 kill knives
- 4 evisceration forks
- 4 gizzard scissors
- 4 lung scrapers
- 2 sharpening steel

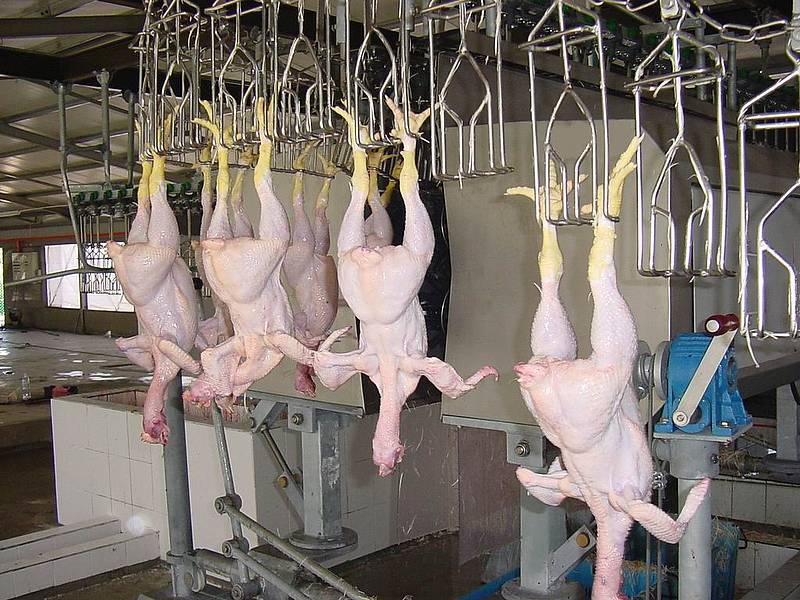

Head/neck/hock cutter
- Pneumatically powered (excluding compressor)
- Weight Balance
1 water chiller, all stainless steel
- Dimensions: 1.6m diameter x 3m long
- Blower 1.75kW
- Optional cold water generator/flake ice machine
Perforated table at out-feed chiller
- All stainless steel

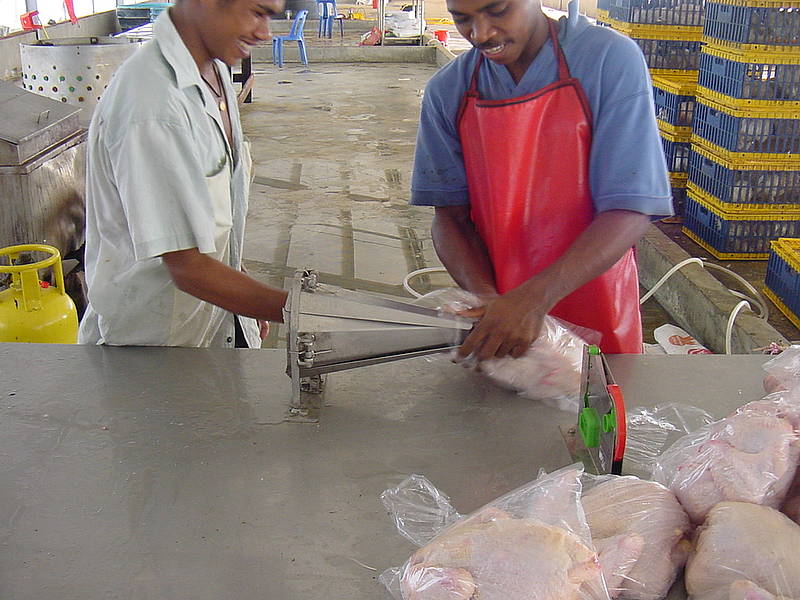

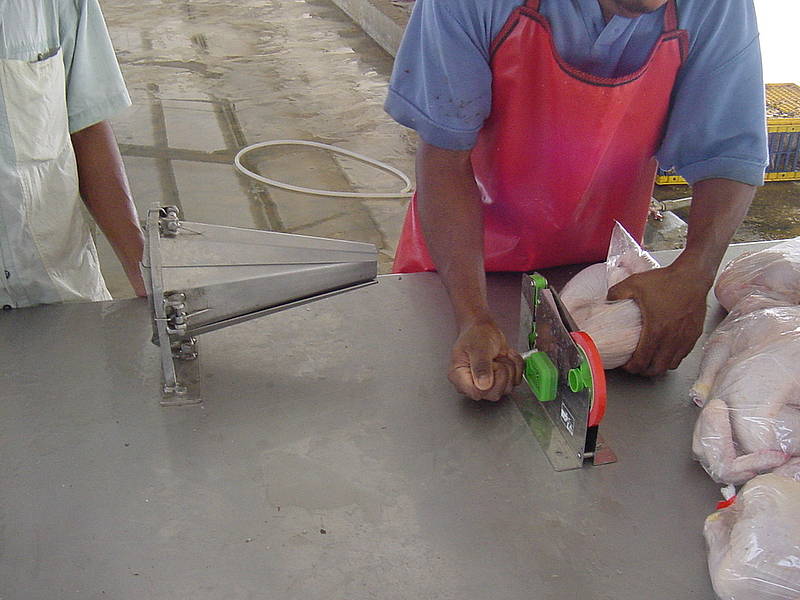

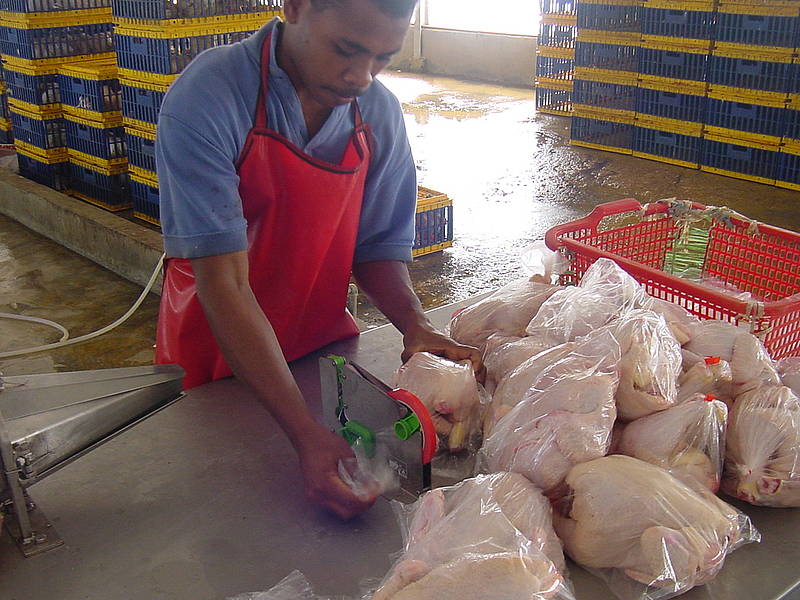

Packing table
- 1 packing funnel (for chicken in bags)
1 tape sealer or clipper

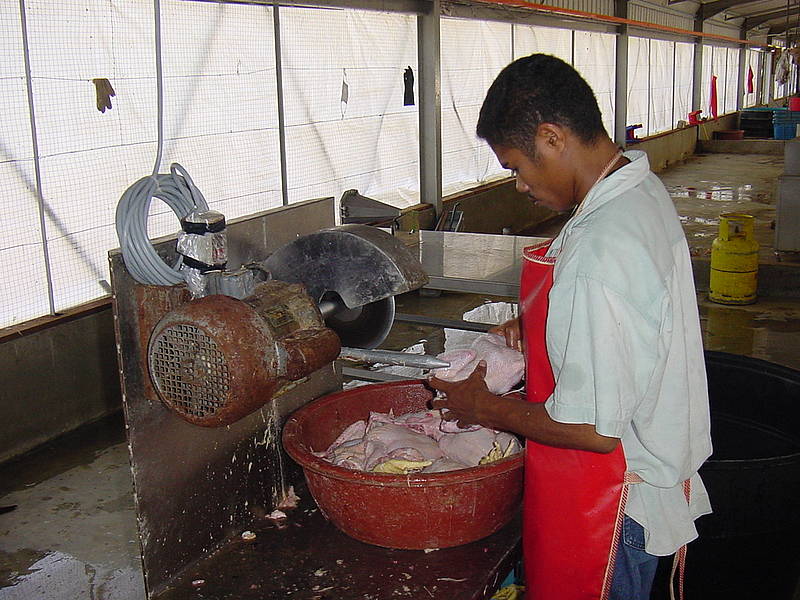

Table mounted needle cutter station
- 1 Needle cutter (0.25kW)
- with track
- 6” chain/trolleys, shackles (8” optional)
- corner wheels
- drive (variable speed)
- tensioner
- total line length: up to 60m

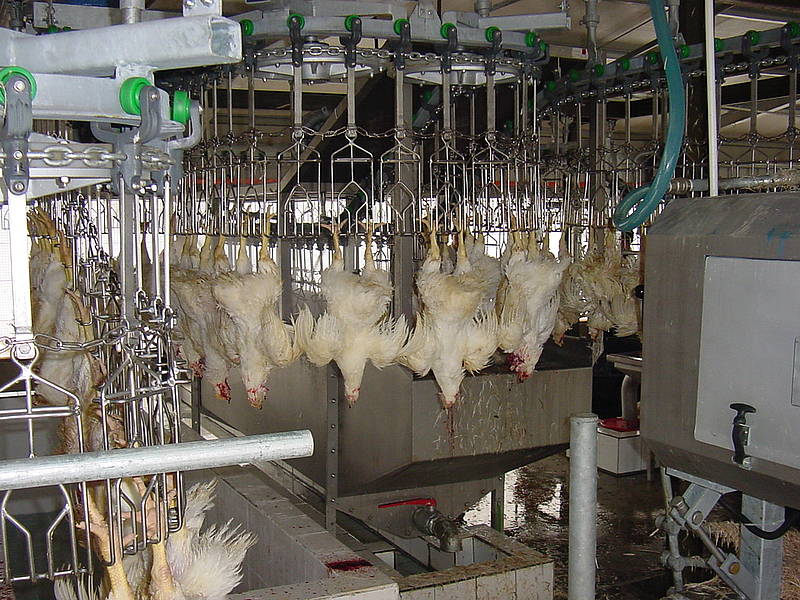

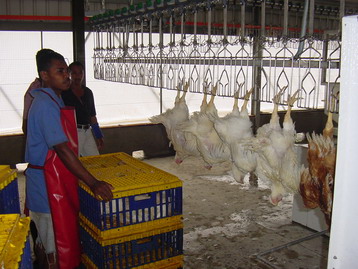

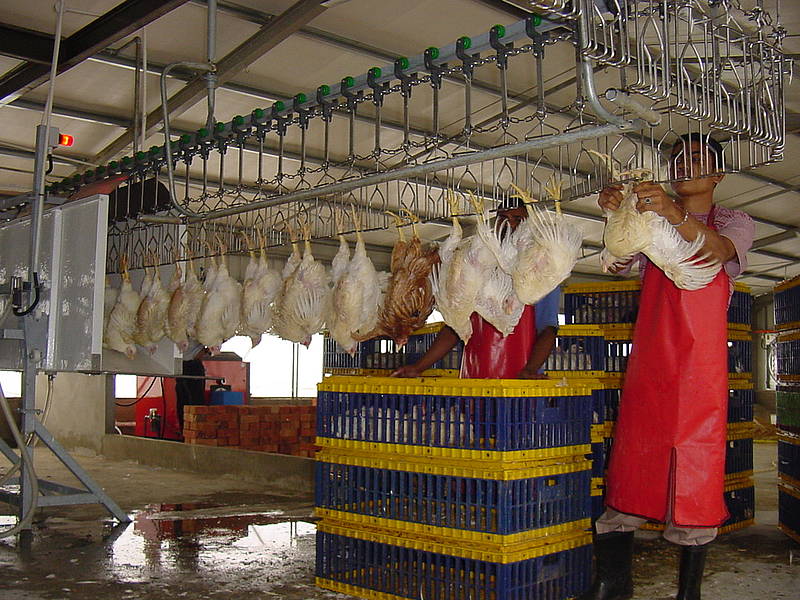

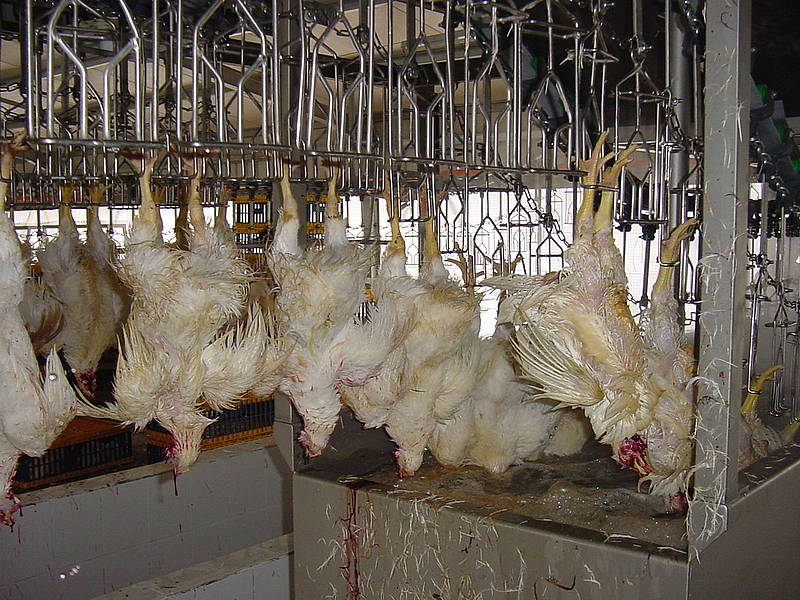

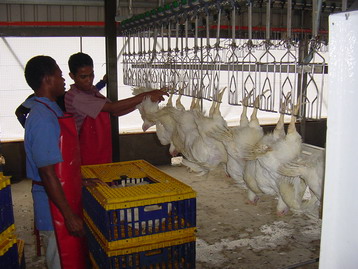

Killing section

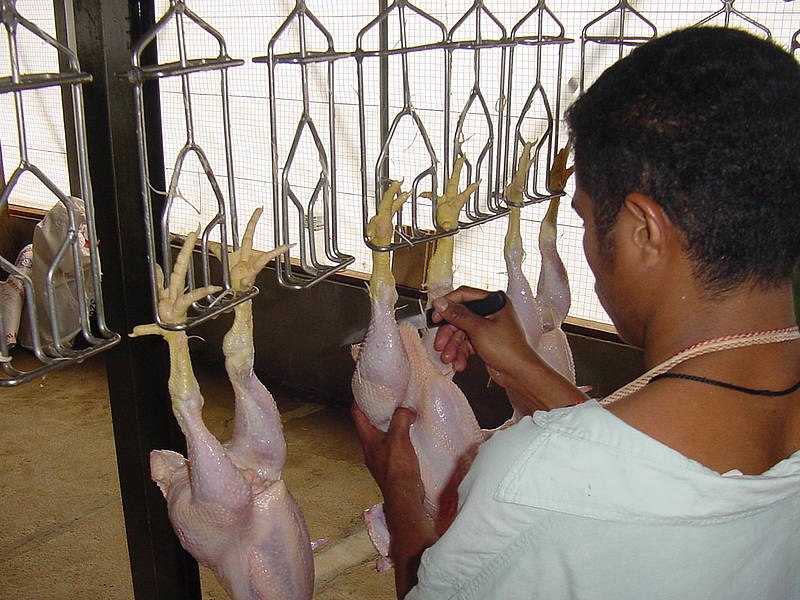

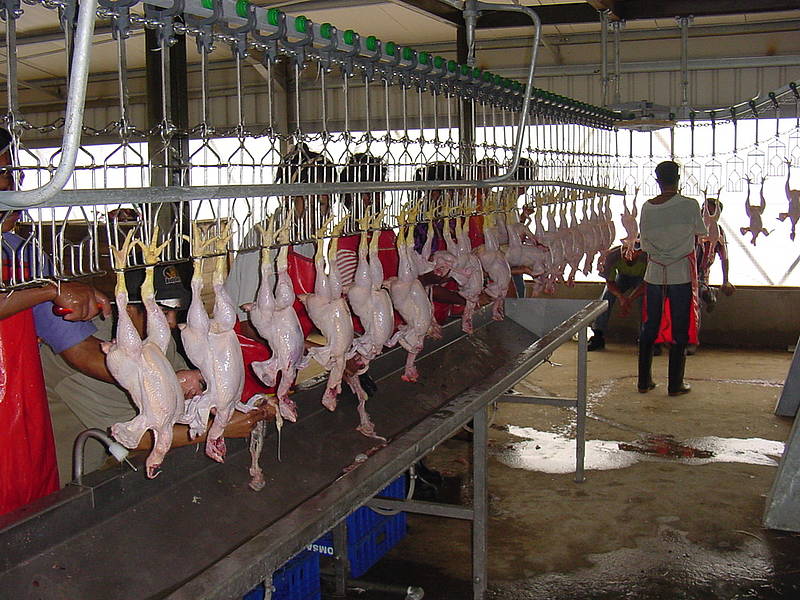

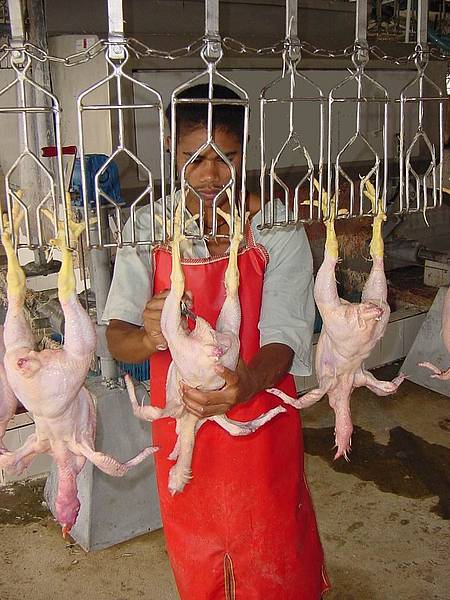

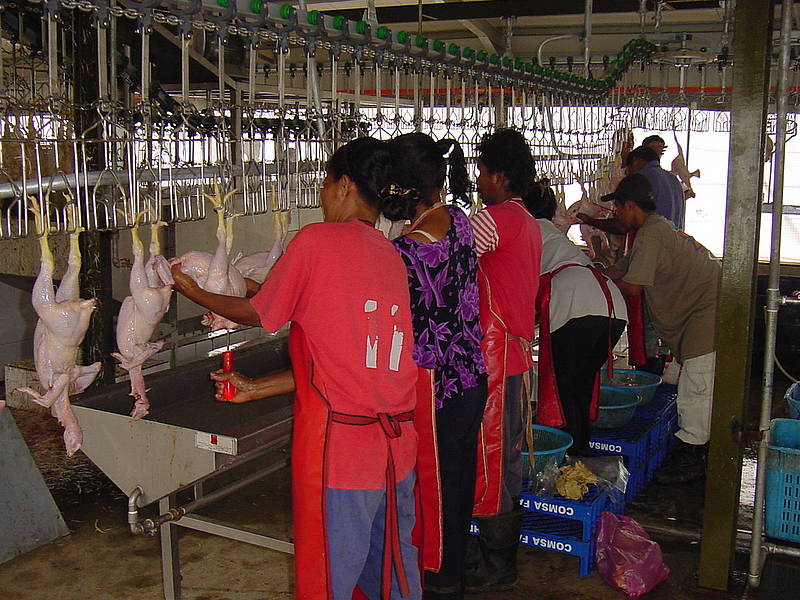

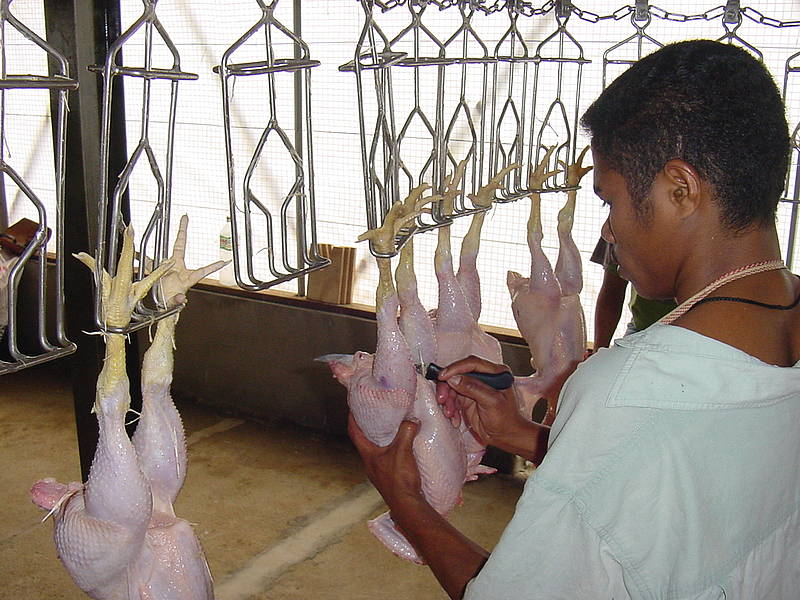

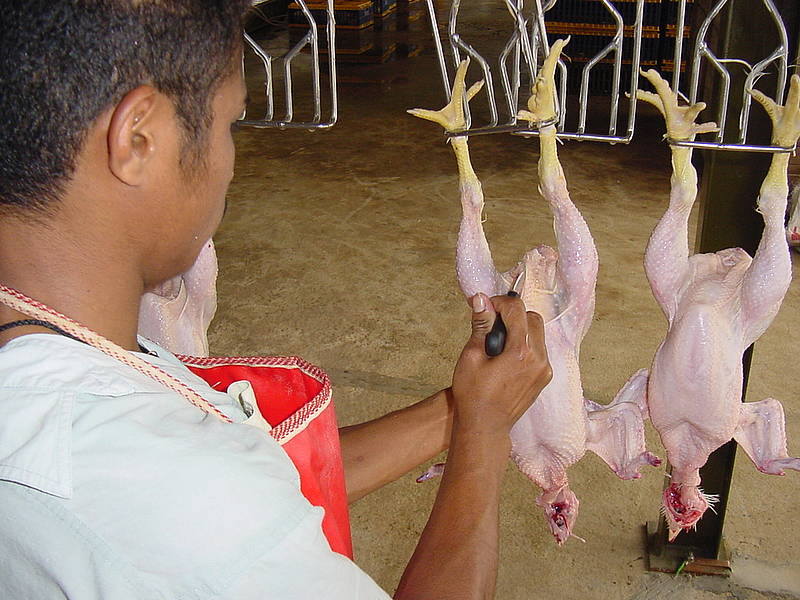

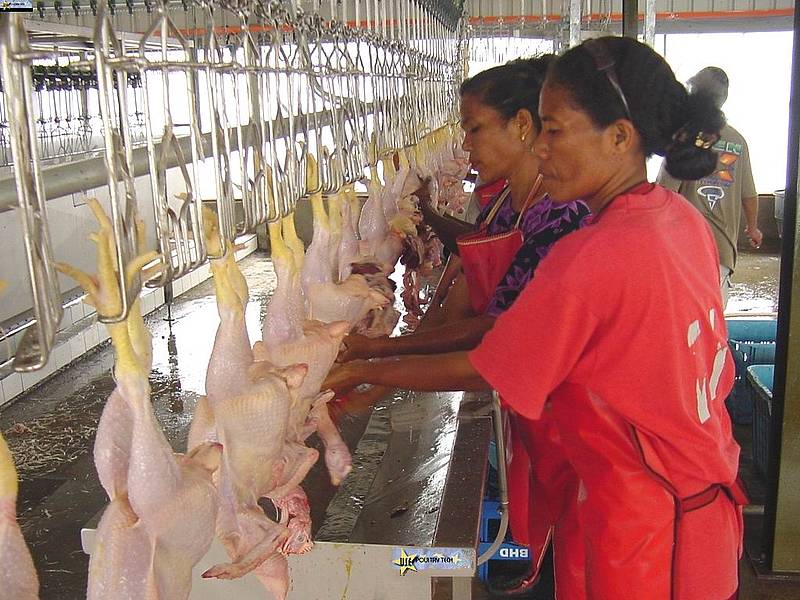

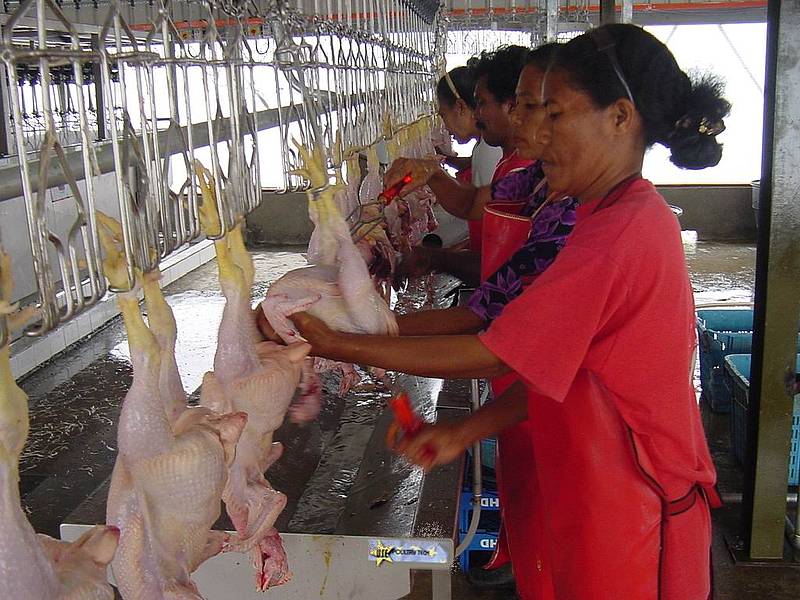

Evisceration section
Chilling section
500 - 1300 Poultry Processing Plant (custom layout)
Details
brand: | USE Poultry Technology |
machine: | Complete Poultry Processing Line |
pitch: | 6" or 8" |
direction: | Clockwise or Counter-clockwise |
units: | stunner scalder plucker ev-trough waterchiller |
capacity: | 500- 1500 BPH |
current state: | new, mde on order |
