Feet peeling line

Cost-effective, easy to maintain equipment for skinning up to 25.000 poultry feet per hour.

feet skinning line

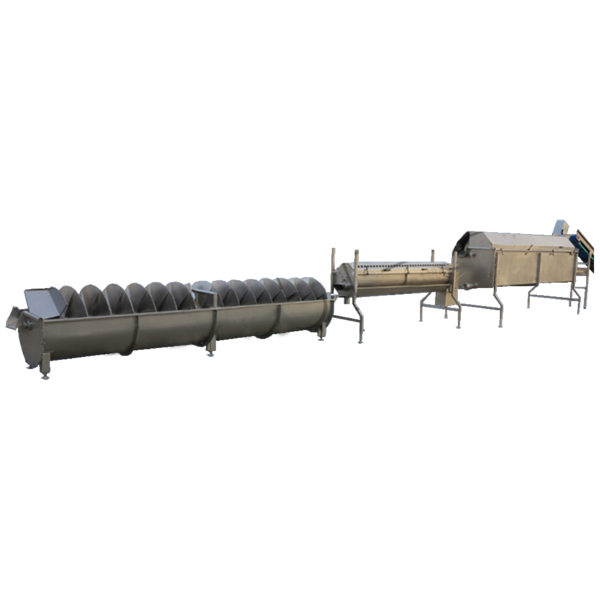

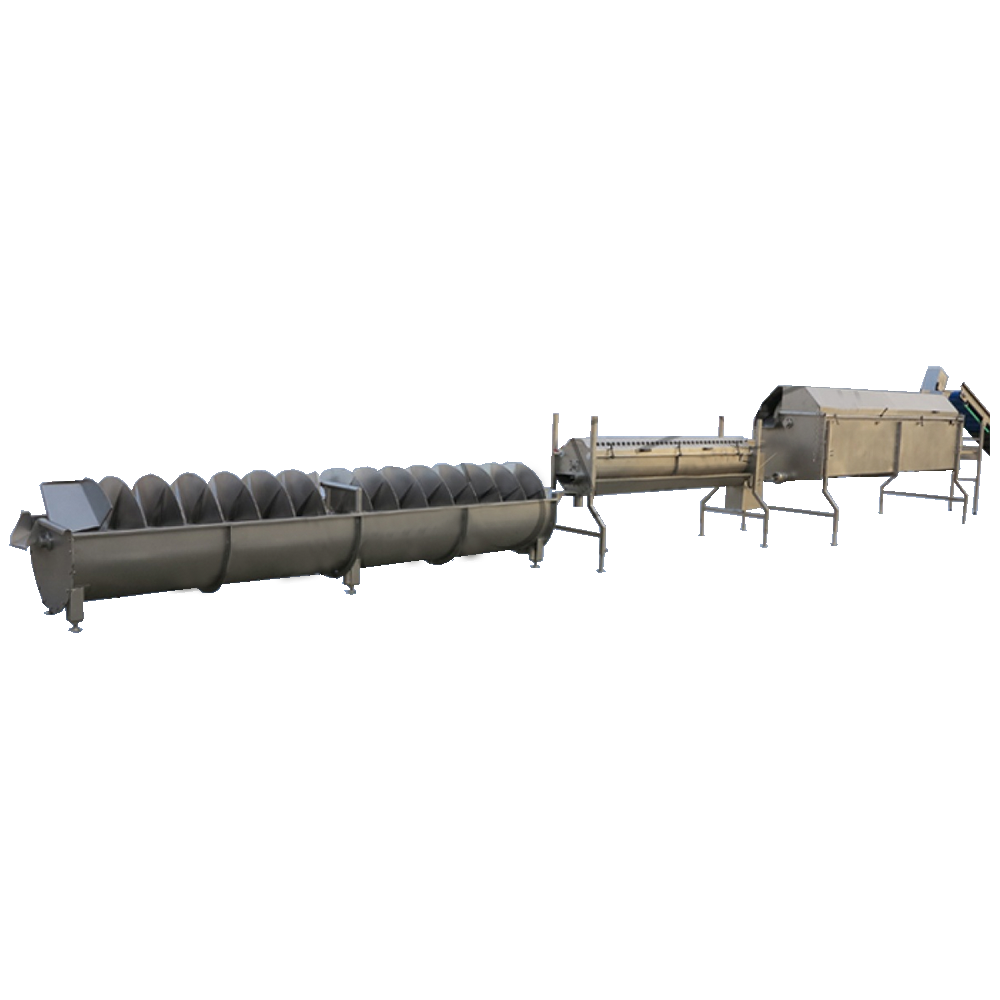

a NEW complete continuous feetskinning set-up, consisting of:

  • feetscalder, scalding with hot water/steam (57-63deg) approx 3 minutes (variable)

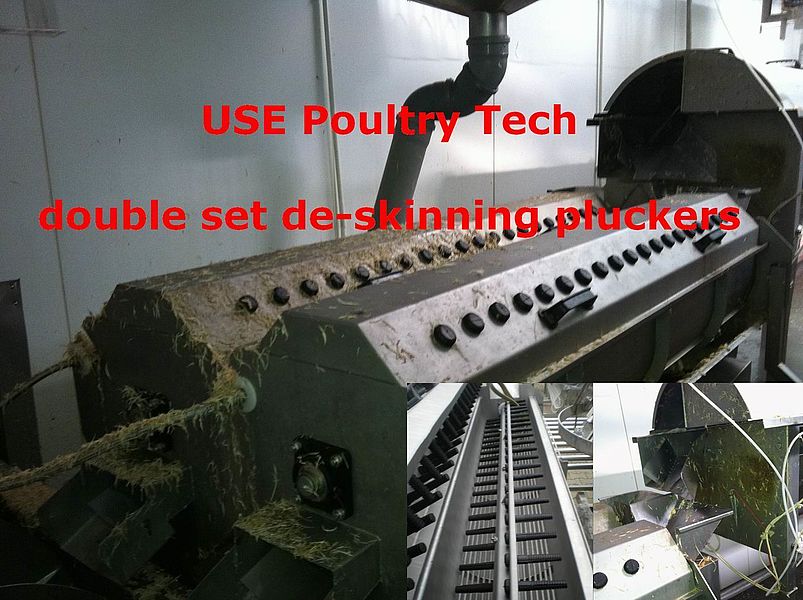

  • feet plucker
  • water chiller
  • speed inverter
  • blower (for chiller)

capacity: 12.000 to 25.000 ft/hr

Technical specifications:

Feetscalder

  • installed power           - 0.18 kW
  • wormshaft speed        - 3.3 rpm
  • scalding time              - 1.5 min
  • scalding temperature  - 65-70oC

Feetplucker

  • installed power           - 2.2 kW
  • voltage                       - 380 V; 50 Hz
  • capacity                      - up to 5000 b/h
  • shaft speed                 - 255 rpm
  • actual weight              - 180 kg
  • water consumption      - 2.5 l/min

 Water Chiller

  • installed power            - 1.5 kW
  • voltage                        - 380 V



Interested? contact us!





feet de-skinning line



Feet deskinning line

Details

brand: USE Poultry Tech
machine: feet scalder, feet de-skinner, feet chiller
year manufactured: Build to order
capacity: 6000 - 12000 bph
current state: 1
